Home >> Kia >> 2003 >> Sedona EX >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Electronic Time And A Alarm Control System >> ETACS (Electronic Time And A Alarm Control System) >> Electronic Time And Alarm Control Module >> Circuit Diagram

Circuit Diagram

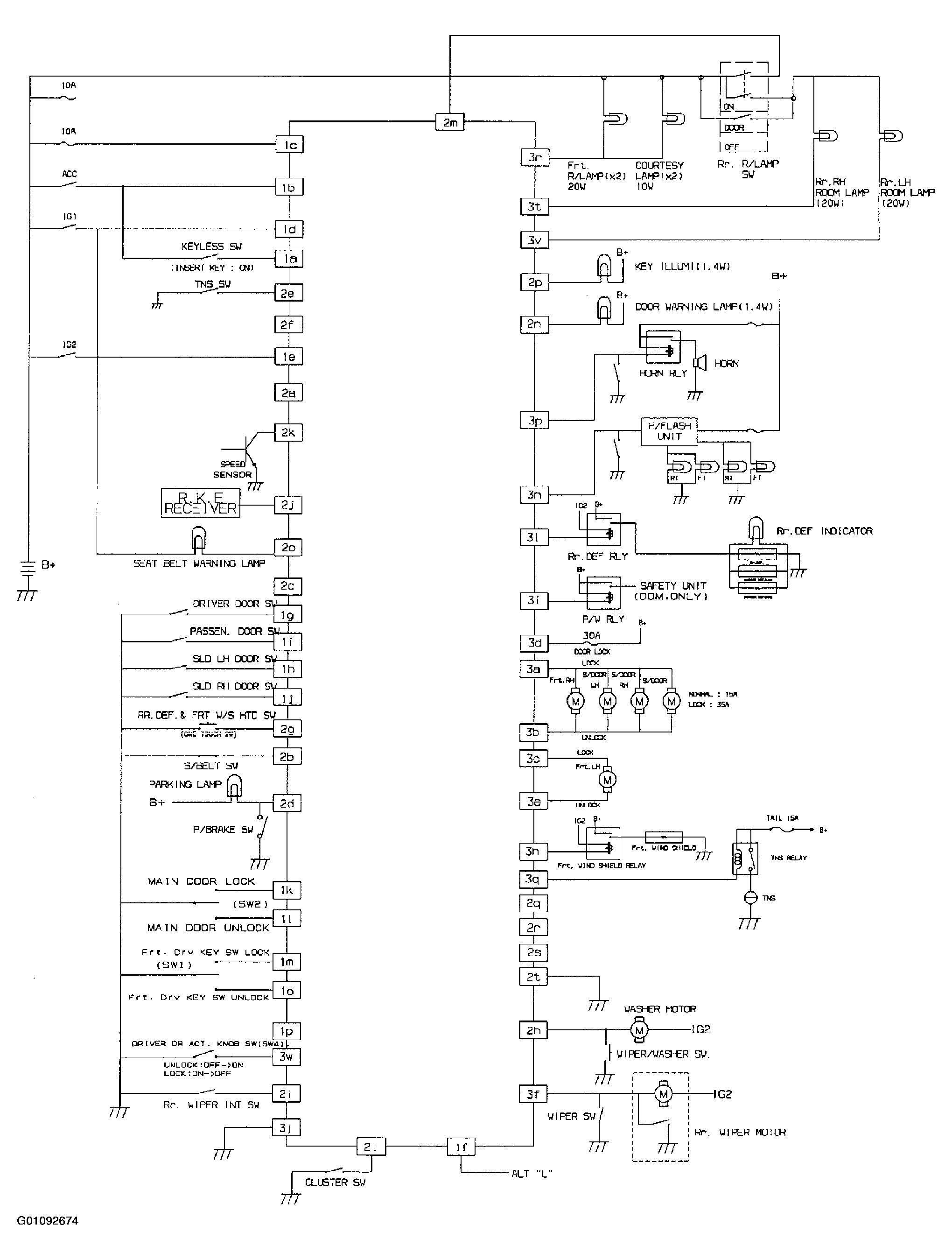

Fig 1: Electronic Time And Alarm Control Module Circuit Diagram

G01092674

Courtesy of KIA MOTORS AMERICA, INC.
