DRL Connector End View

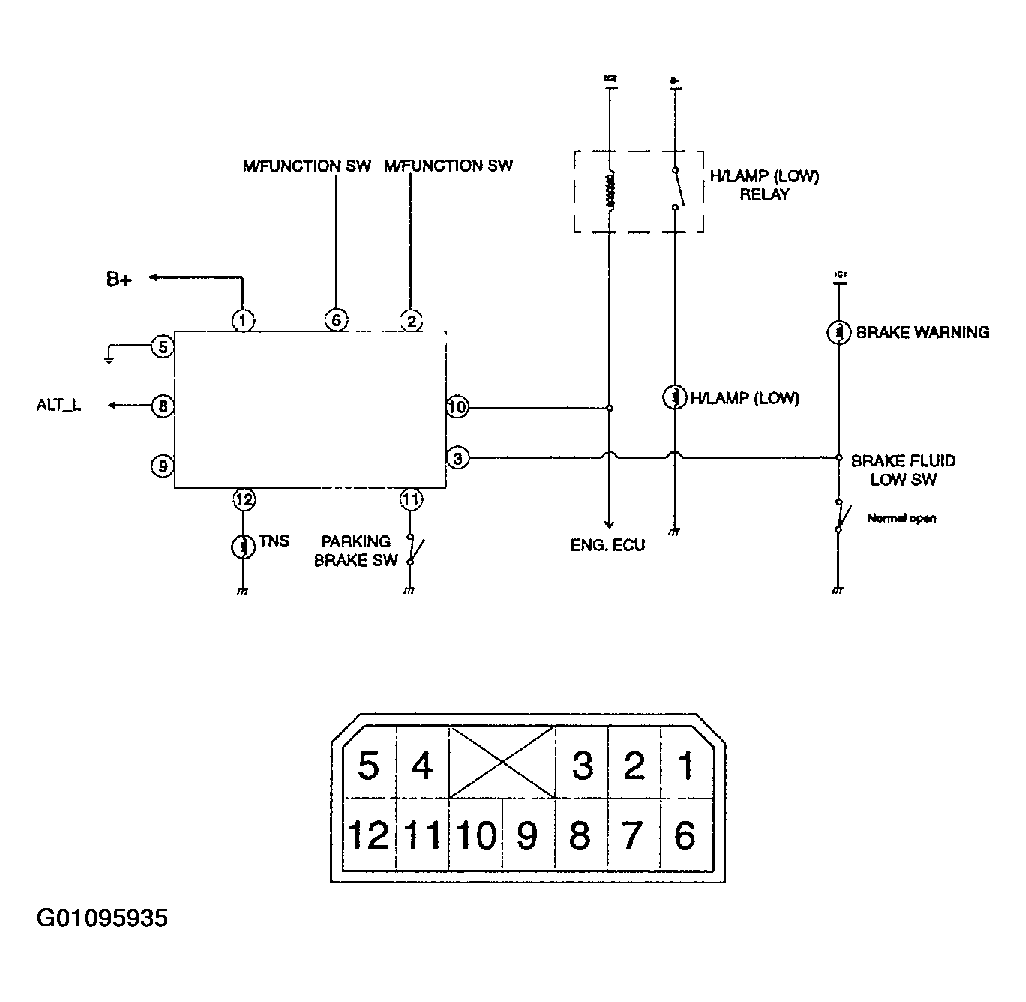

Fig 1: DRL Connector End View

G01095935

Courtesy of KIA MOTORS AMERICA, INC.
