Home
>>
Kia
>>
2003
>>
Rio Base, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti Lock
>>
Abs (Anti-Lock Brake System)
>>
Troubleshooting Guide
>>
Self-Diagnosis Procedures (With The Diagnostic Scan Tool)
>>
Checking Functionality
Checking Functionality

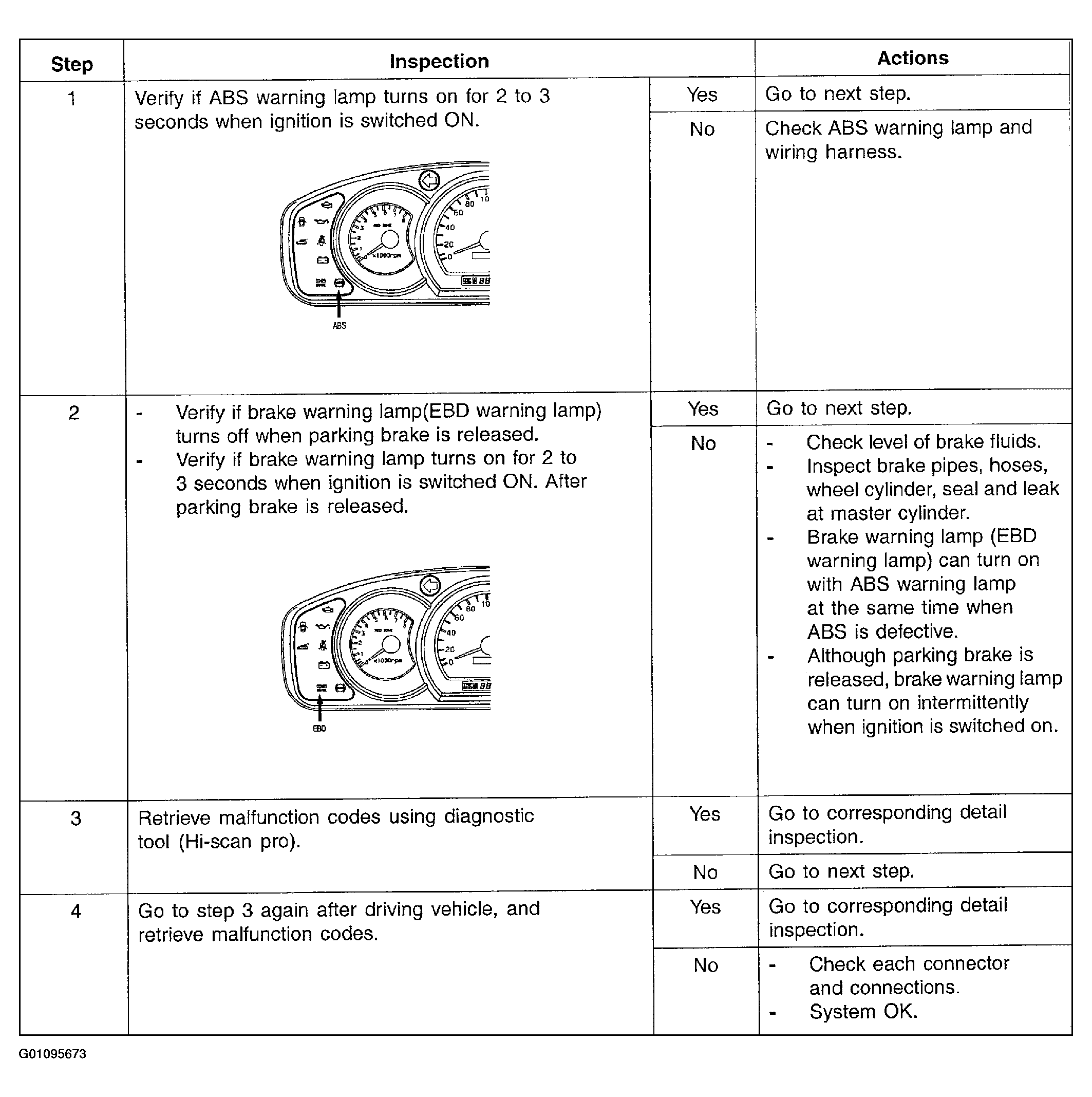

Fig 1: Functionality Guide
Courtesy of KIA MOTORS AMERICA, INC.
