Blower Unit: Removal

WARNING: This page is about a different car, the 2005 Kia Spectra5, 2005 Kia Spectra, and 2004 Kia Spectra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash panel.
  3. Disconnect the connectors from the temp. actuator, the mode actuator and the thermistor, then remove the mounting nuts.

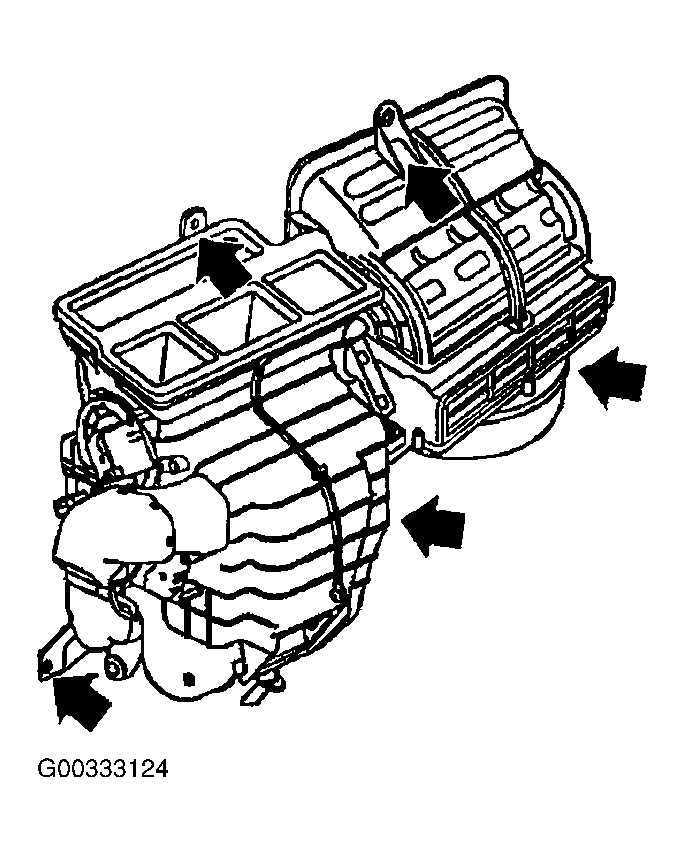

    Fig 1: Removing Mounting Nuts
    G00333124Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the heater and evaporator unit after loosening the mounting screws.

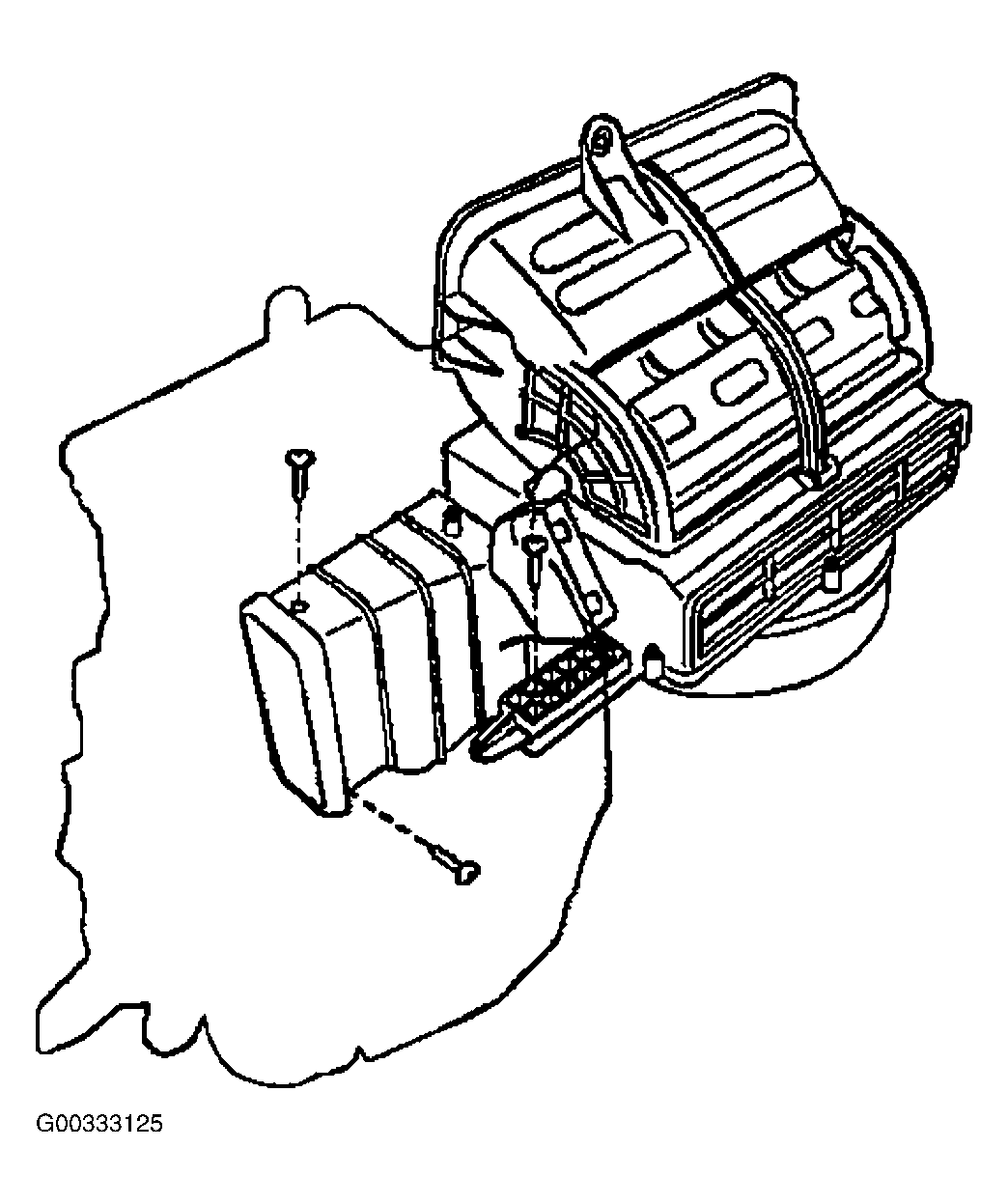

    Fig 2: Removing Heater & Evaporator Unit Mounting Screws
    G00333125Courtesy of KIA MOTORS AMERICA, INC.
