Mass Air Flow (MAF) Sensor

WARNING: This page is about a different car, the 2004 Kia Amanti. However, it is still accessible from the selected car via links, so may be relevant.

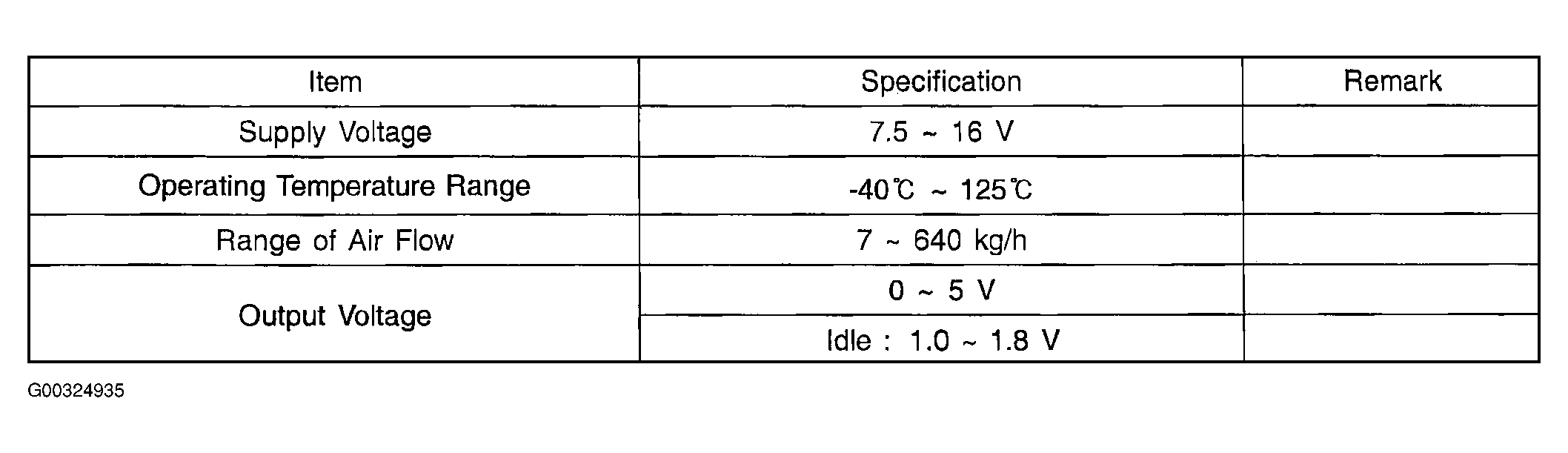

Fig 1: MAF Sensor Specifications Chart

Courtesy of KIA MOTORS AMERICA, INC.

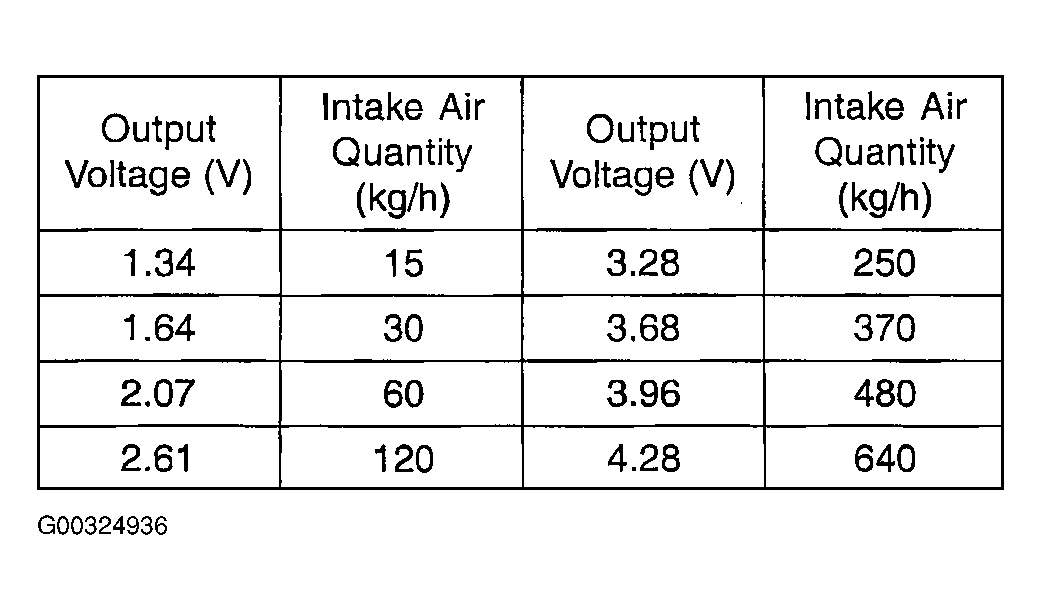

Fig 2: MAF Sensor Output Voltage Chart

Courtesy of KIA MOTORS AMERICA, INC.

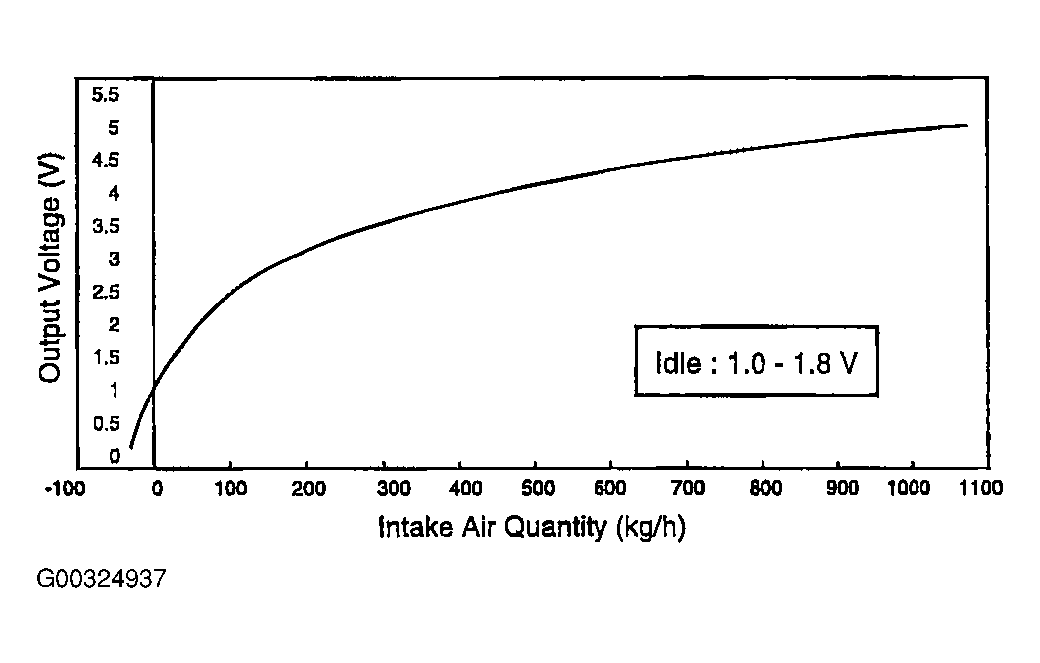

Fig 3: MAF Sensor Output Voltage Graph

Courtesy of KIA MOTORS AMERICA, INC.
