Diagram Of Input/Output For HECU

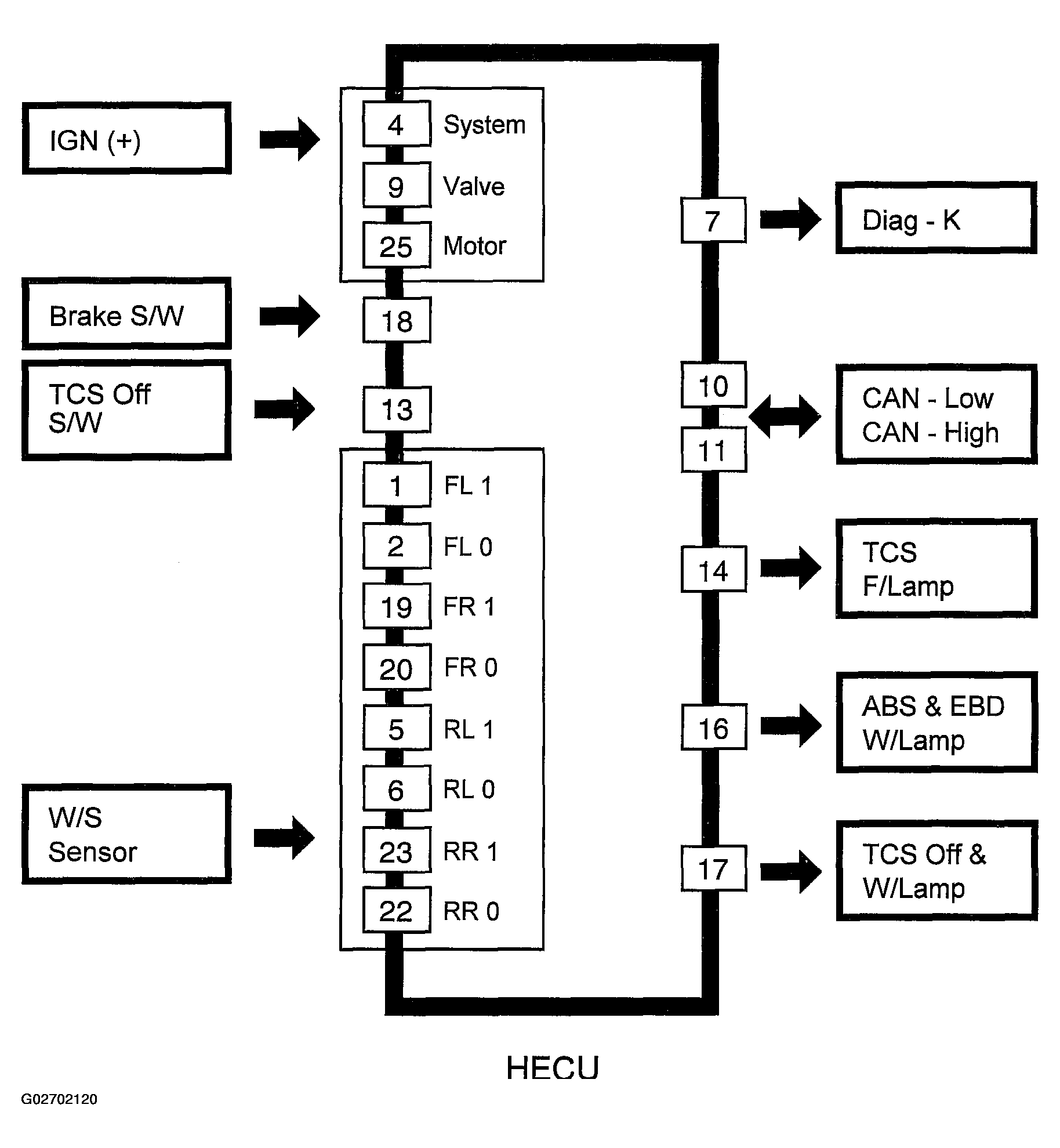

Fig 1: HECU Input/Output Diagram

G02702120

Courtesy of KIA MOTORS AMERICA, INC.
