Home >> Kia >> 2001 >> Sephia Base, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul >> Description And Operation >> Structural View

Structural View

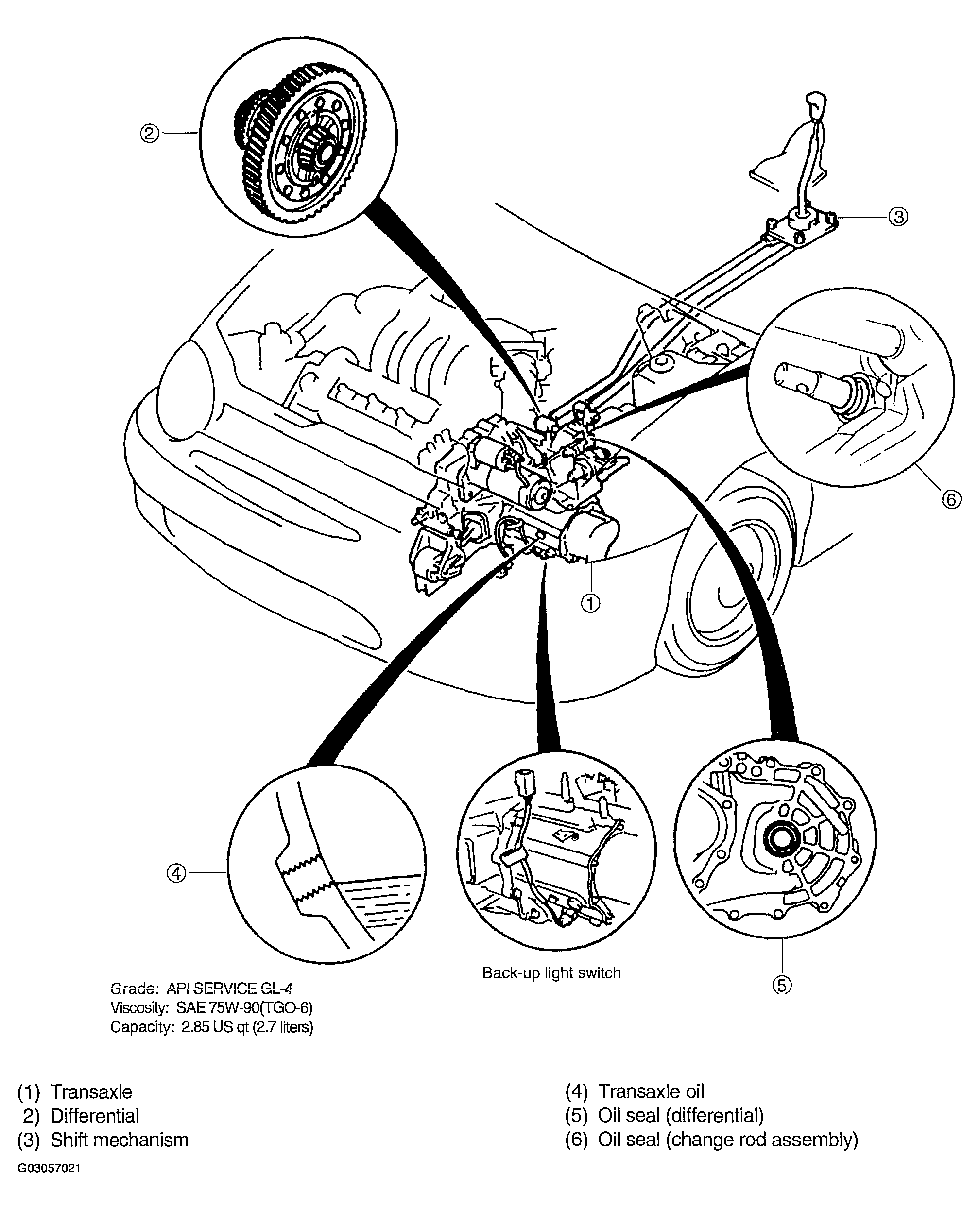

Fig 1: Identifying Structural View Of Transaxle

G03057021
