Torque Specifications - 3.6L Exhaust System

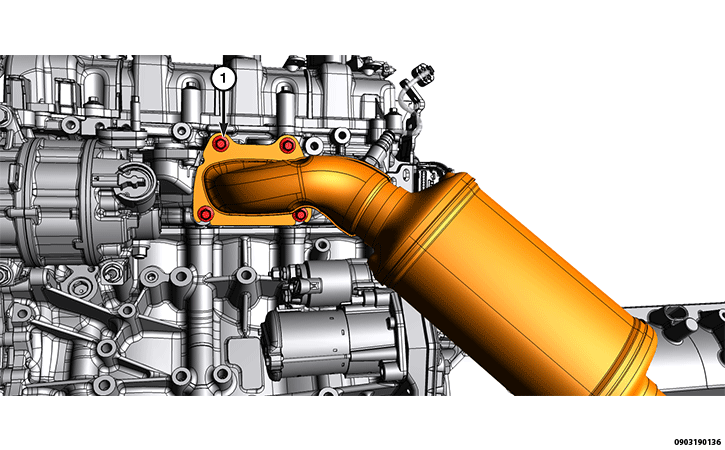

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Catalytic Converter to Cylinder Head Bolts | 23 N. m (17 Ft. Lbs.) | - |

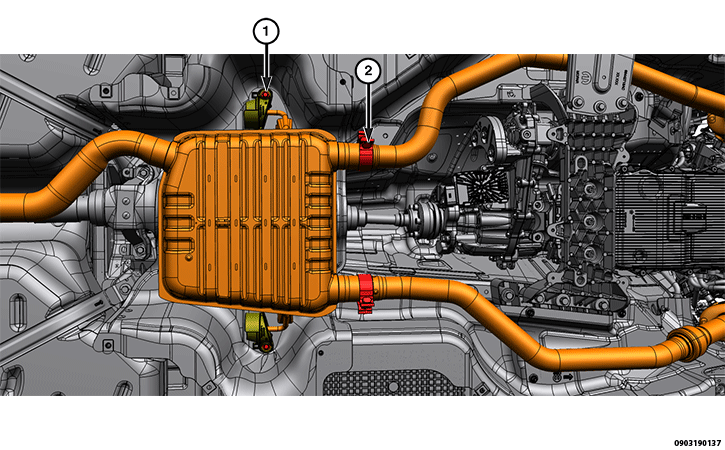

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Exhaust Isolator Bolt | 25 N. m (18 Ft. Lbs.) | - |
| 2 | Exhaust Muffler Clamp Nuts | 55 N. m (41 Ft. Lbs.) | - |

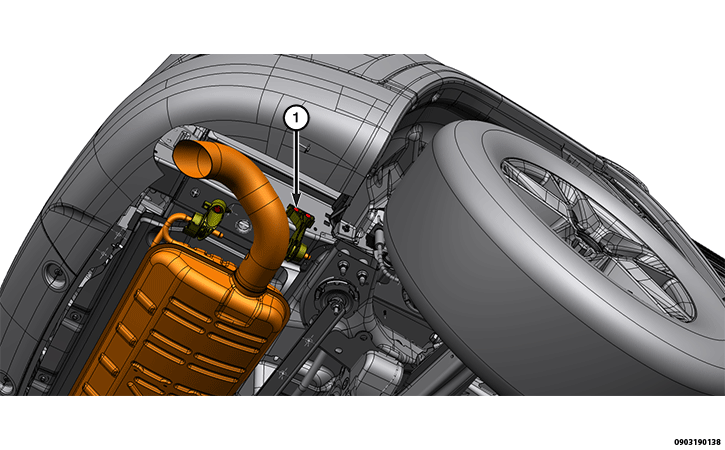

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Exhaust Isolator Bolts | 25 N. m (18 Ft. Lbs.) | - |

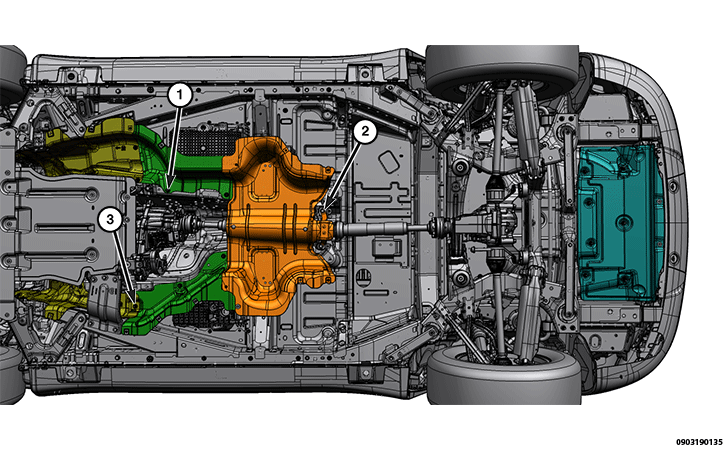

| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Heat Shield Nuts - Plastic | 5 N.m (44 In. Lbs.) | - |
| 2 | Heat Shield Bolts | 18 N.m (13 Ft. Lbs.) | - |
| 3 | Heat Shield Nuts - Steel | 8 N.m (71 In. Lbs.) | - |
| - | Spare Tire Heat Shield To Underbody (Heat Shield Bolts) | 6 N.m (53 In. Lbs.) | - |
