Trailer Tow Module - Two Row Seating

REMOVAL

1. Pull out the storage bin.

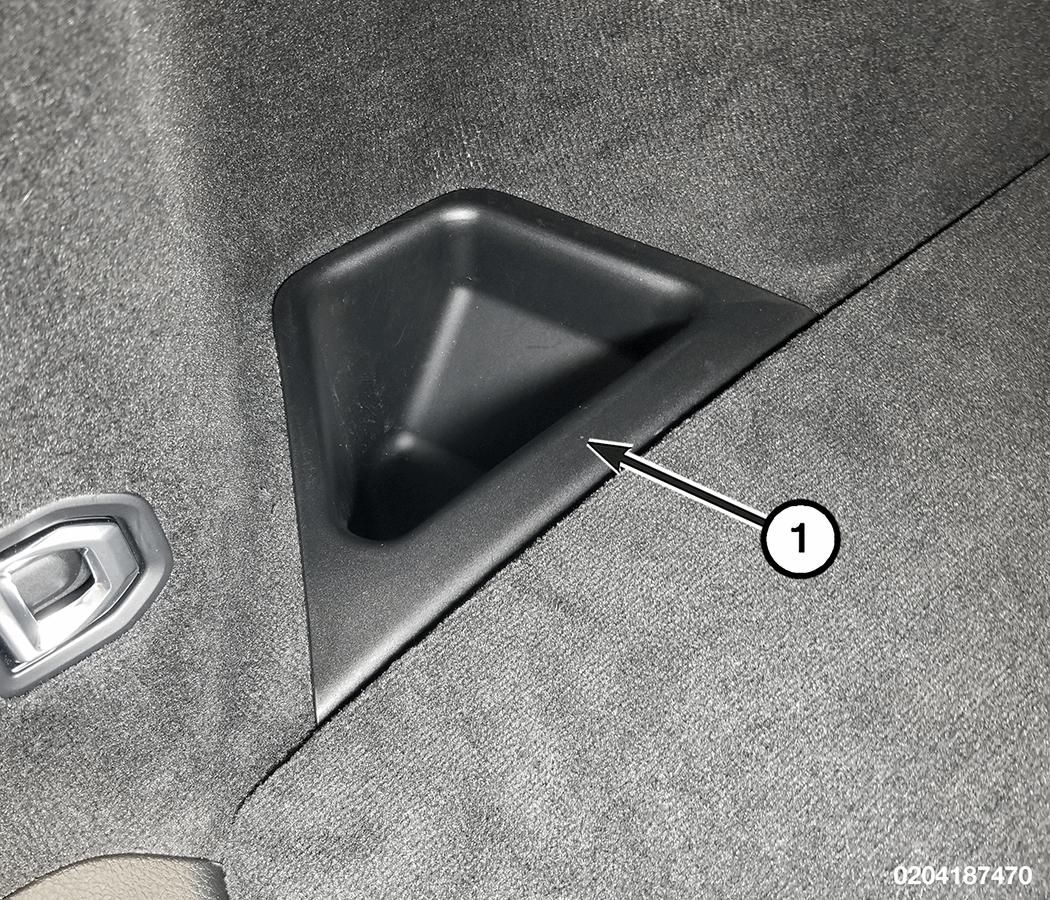

   Courtesy of CHRYSLER GROUP, LLC

   1 - Storage Bin

2. Disconnect the Trailer Tow Module (TTM) wire harness connector.

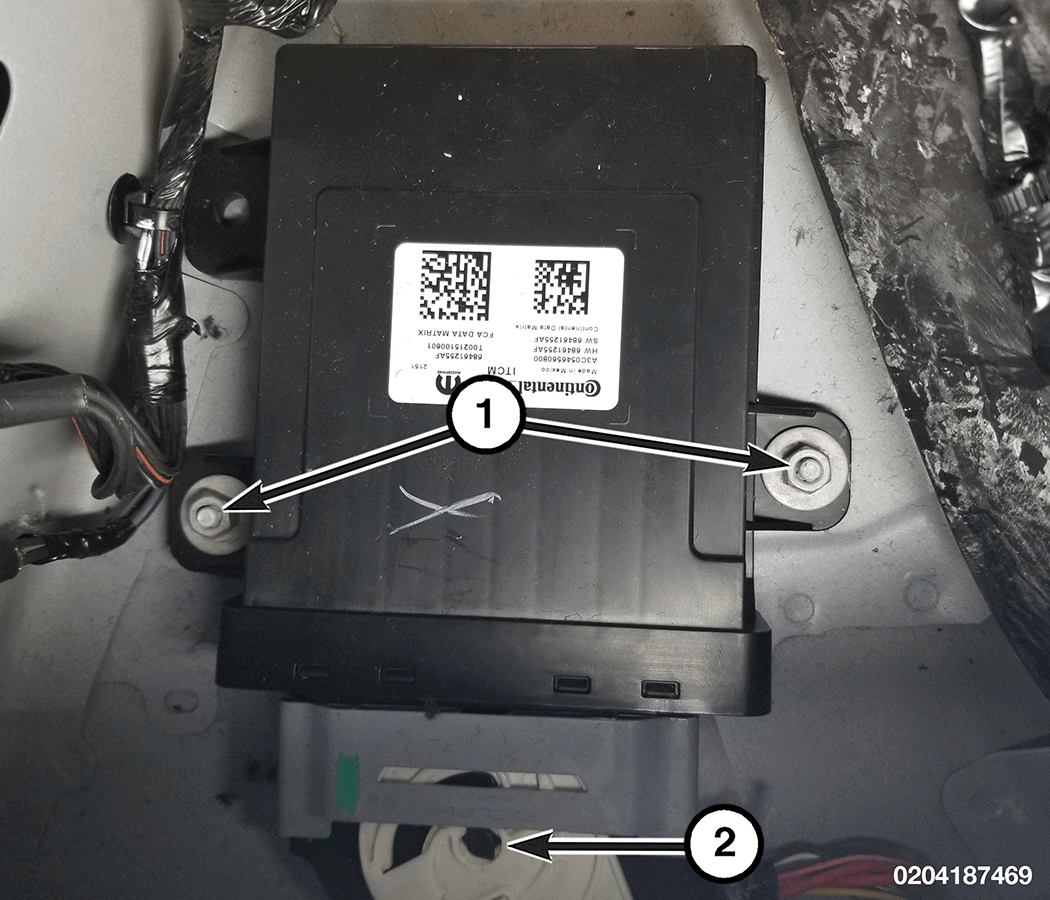

   Courtesy of CHRYSLER GROUP, LLC

   1 - TTM Nuts

   2 - TTM

3. Remove the TTM nuts and remove the TTM.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.

• After applying 12V power to the vehicle, use the WiTech tool to run the "ESS 150 Amp Fuse Check" routine.
