Torque Specifications - Transmission Mount

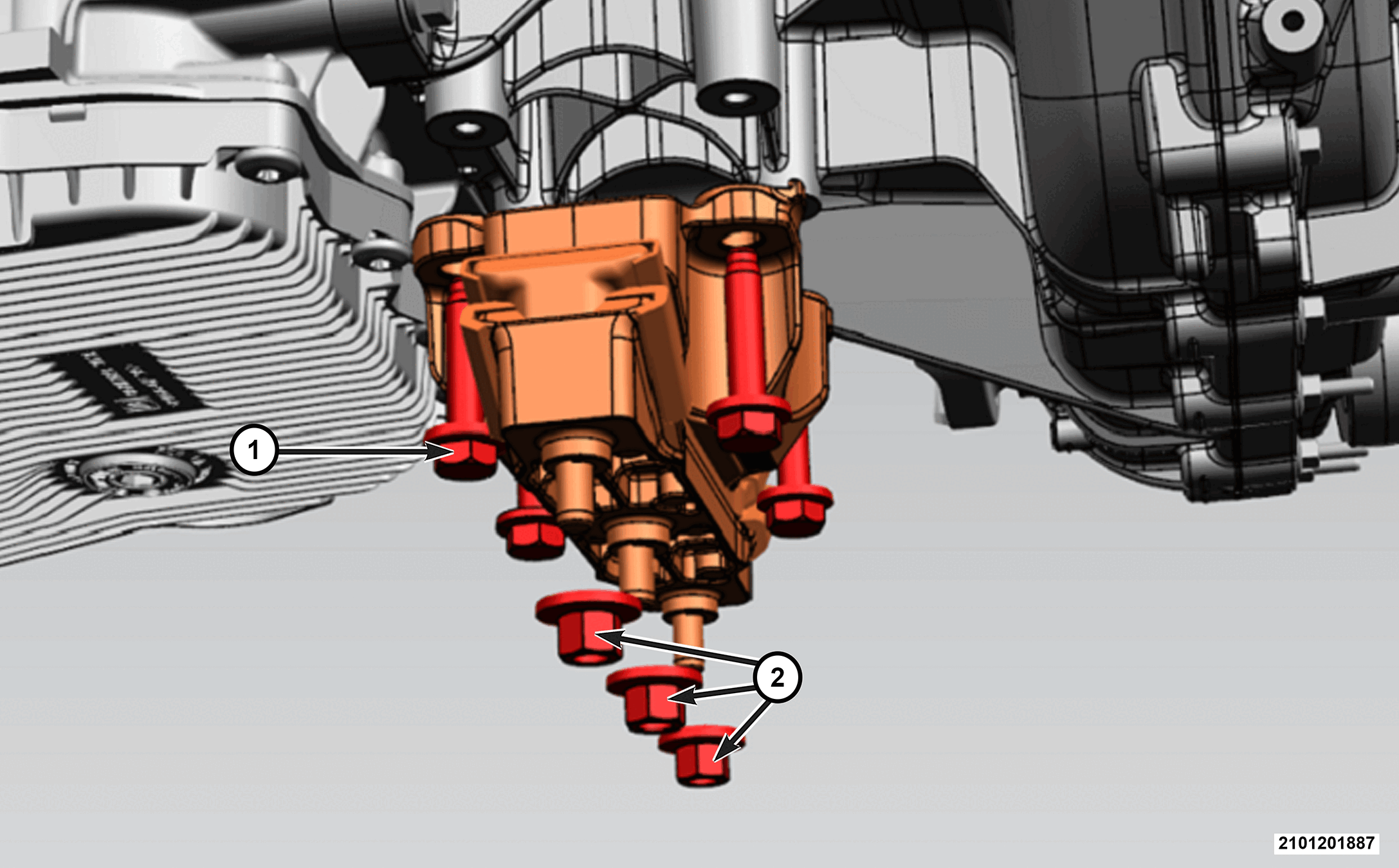

GC0220585Courtesy of CHRYSLER GROUP, LLC
CALLOUT DESCRIPTION SPECIFICATION COMMENT
1 Transmission Isolator to Transmission Bolts 63 N.m (46 Ft. Lbs.)  -
2 Transmission Isolator to Crossmember Nuts 63 N.m (46 Ft. Lbs.)  -
