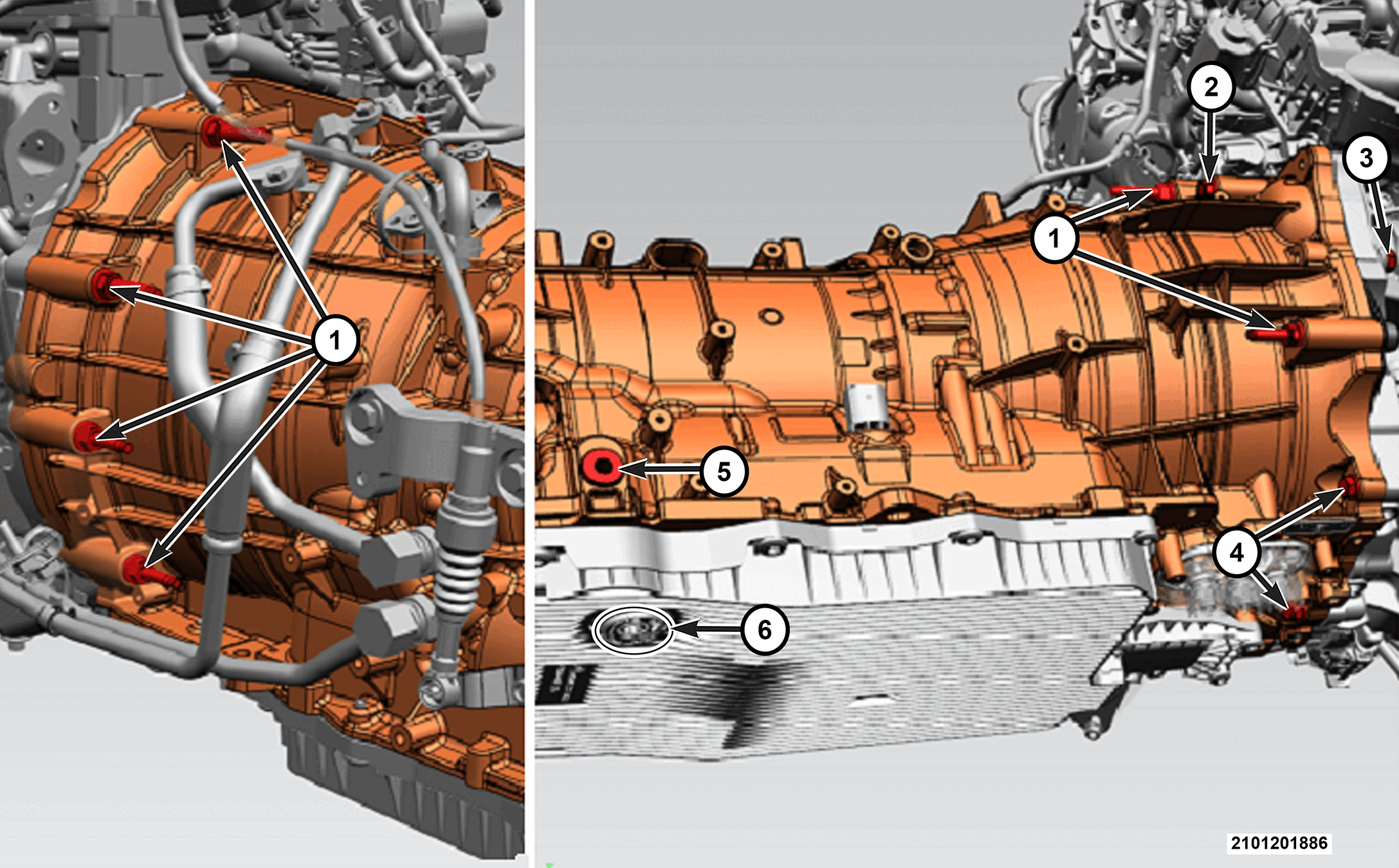

Torque Specifications - BELLHOUSING And Oil Fill Plug
2.0 L GMET
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Bellhousing to Engine Double Ended Studs | 48 N.m (35 Ft. Lbs.) | - |
| 2 | Bellhousing To Starter Cover Upper Bolt | 25 N.m (18 Ft. Lbs.) | - |
| 3 | Starter Cover Lower Bolt | 25 N.m (18 Ft. Lbs.) | - |
| 4 | Bellhousing to Engine Oil Pan Bolts | 50 N.m (37 Ft. Lbs.) | - |
| 5 | Transmission Oil Fill Plug | 35 N.m (26 Ft. Lbs.) | Located on right side of transmission case. |
| 6 | Transmission Oil Drain Plug | 9 N.m (80 In. Lbs.) | - |
3.6 L
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Bellhousing to Engine Double Ended Studs | 48 N.m (35 Ft. Lbs.) | - |
| 2 | Bellhousing To Engine Bolts | 50 N.m (37 Ft. Lbs.) | - |
| 3 | Engine To Bellhousing Bolts | 50 N.m (37 Ft. Lbs.) | - |
| 5 | Transmission Oil Fill Plug | 35 N.m (26 Ft. Lbs.) | Located on right side of transmission case. |
| Not Shown | Transmission Oil Drain Plug | 9 N.m (80 In. Lbs.) | - |
