Power Side Step Module

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM .
2. Remove the driver side steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

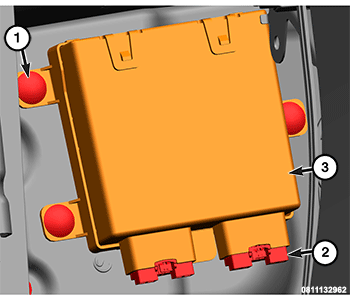

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fasteners

   2 - Wire Harness Connectors

   3 - PSSM

3. Disconnect the Power Side Step Module (PSSM) wire harness connectors.
4. Remove the fasteners.
5. Remove the PSSM from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle and then perform the required. Refer to MODULE, POWER SIDE STEP (PSSM), MODULE PROGRAMMING .
