TBM2 Module

REMOVAL

1. Remove the glove box assembly. Refer to GLOVE BOX, INSTRUMENT PANEL, LOWER, REMOVAL AND INSTALLATION .
2. Through the instrument panel openings, disconnect the wire harness connectors and antennas from the Global Telematics Box Module (TBM2).

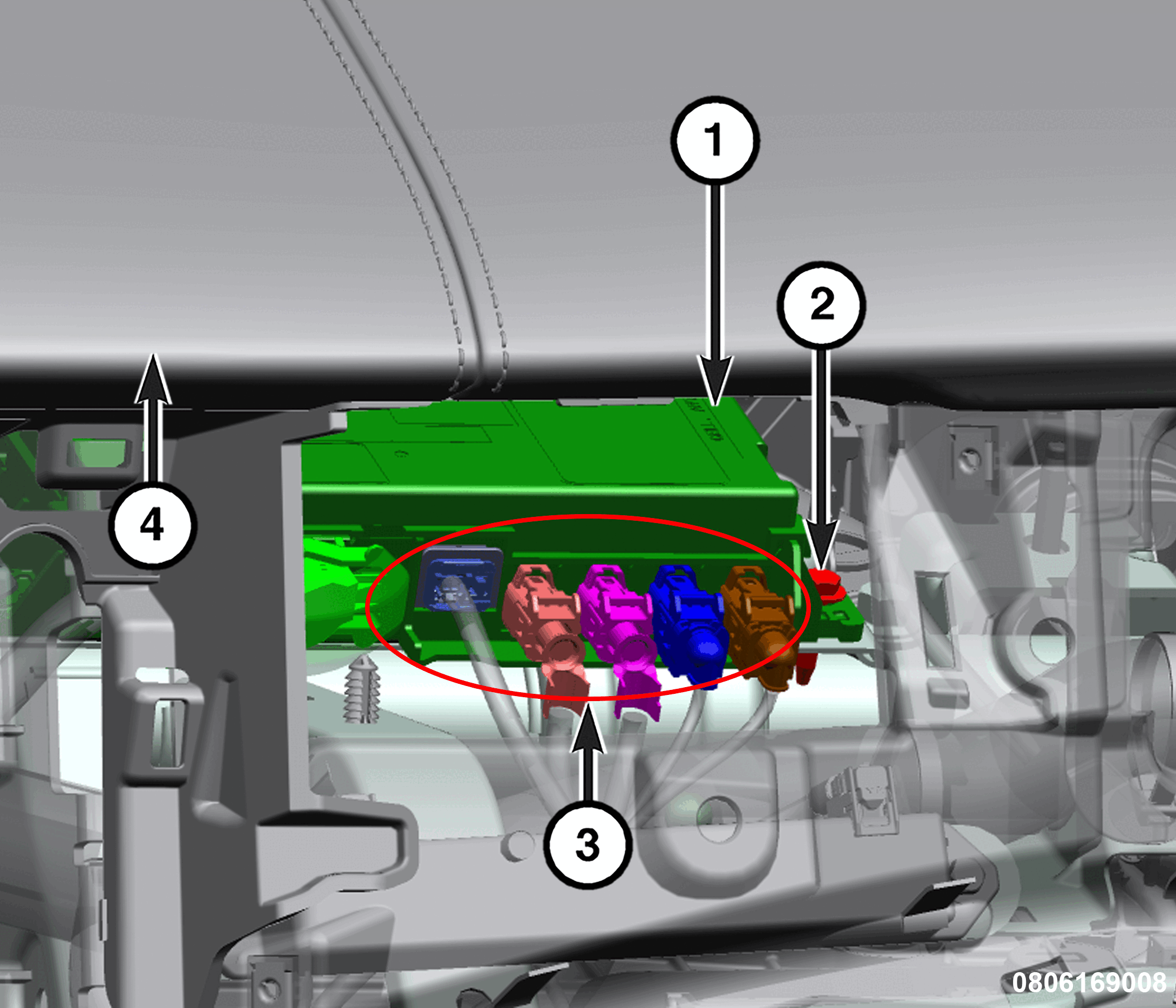

   Courtesy of CHRYSLER GROUP, LLC

   1 - TBM2

   2 - Fastener

   3 - Antenna and Wire Harness Connectors

   4 - Instrument Panel

3. Remove the fastener from the TBM2.
4. Slide to release the TBM2 from the retaining tabs and remove the TBM2 through the glove box opening.

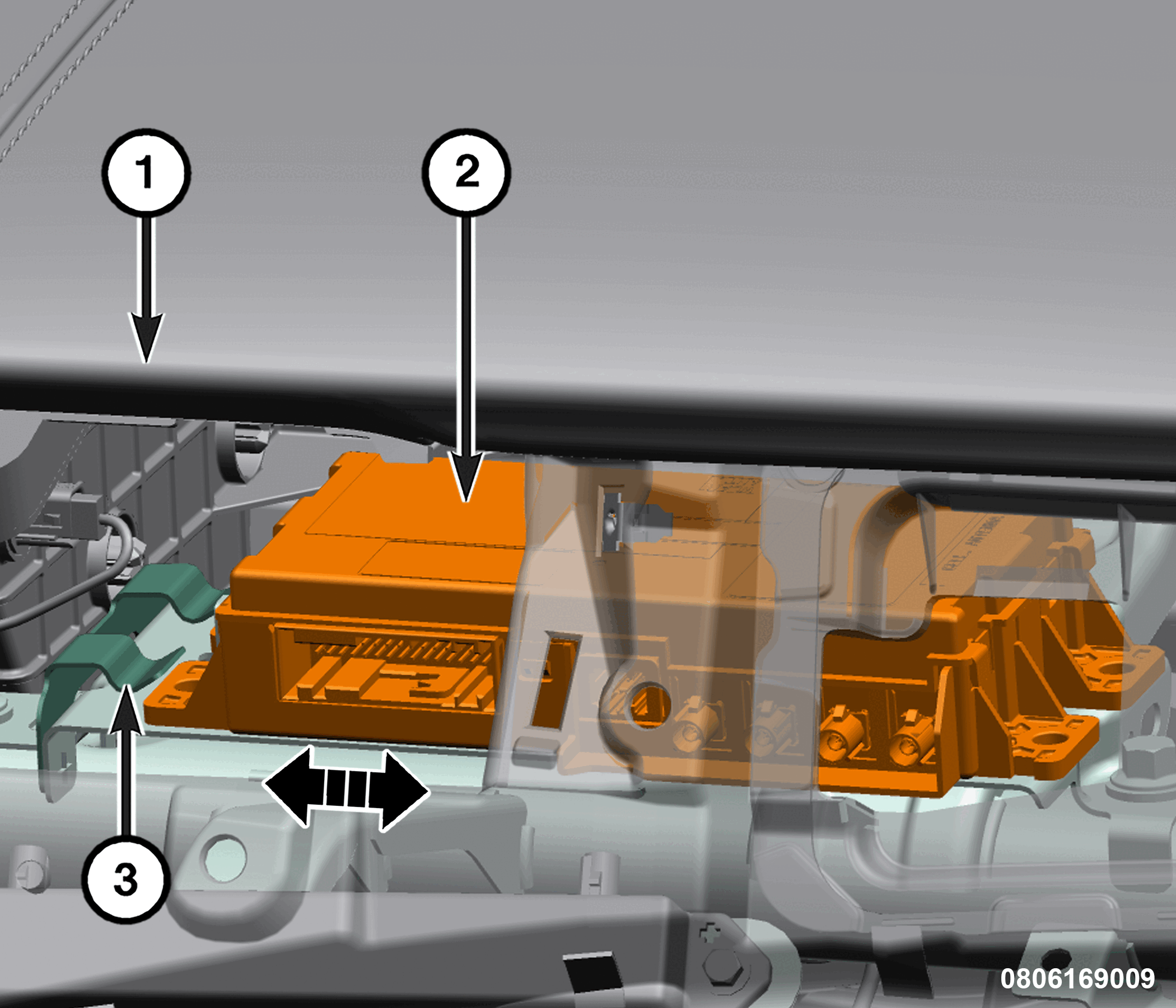

   Courtesy of CHRYSLER GROUP, LLC

   1 - Instrument Panel

   2 - TBM2

   3 - Retaining Tabs

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Tighten fastener securely.
• If replacing the TBM2 with a new unit perform the TBM2 replacement procedure using the WiTech scan tool under TBM2, Misc Functions.
