Front Passenger Display Module

REMOVAL

1. Remove the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL AND INSTALLATION .
2. Using a trim stick or equivalent, remove the front passenger display module trim panel.

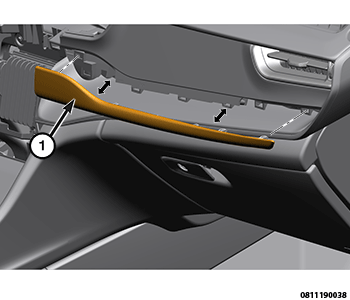

   Courtesy of CHRYSLER GROUP, LLC

   1 - Front Passenger Display Module Trim Panel

3. Remove the fasteners from the Front Passenger Display Module (FPDM).

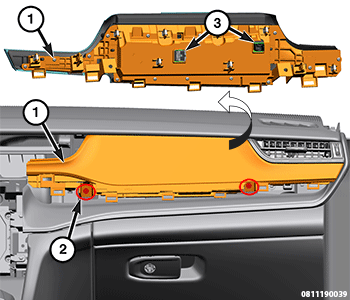

   Courtesy of CHRYSLER GROUP, LLC

   1 - Front Passenger Display Module

   2 - Fasteners

   3 - Wire Harness Connectors

4. Using a trim stick or equivalent, carefully release the FPDM from the instrument panel.
5. Disconnect the wire harness connectors and remove the FPDM from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• All fasteners are tightened securely.
• Hand tap panels to seat fully.
• Verify panel alignment and tab engagement.
