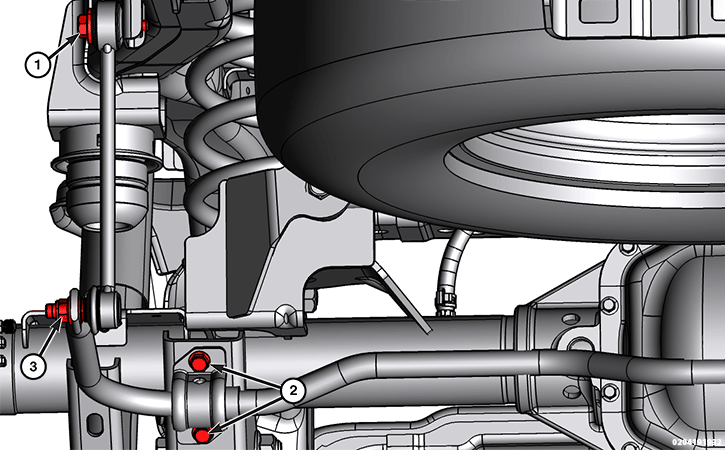

Rear Stabilizer Bar

Courtesy of CHRYSLER GROUP, LLC

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Stabilizer Bar Link Upper Bolt	110 N. m (81 Ft. Lbs.)	-
2	Stabilizer Bar Bolts	55 N. m (41 Ft. Lbs.)	-
3	Stabilizer Bar Link Lower Nut	95 N. m (70 Ft. Lbs.)	-
