Removal And Installation: Tailpipe: Notes

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Cut the exhaust tail pipe as indicated (red line).

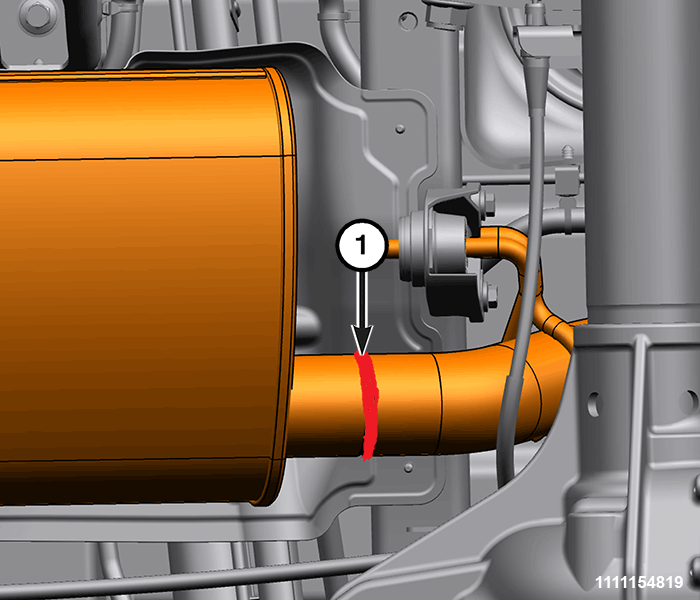

   Courtesy of CHRYSLER GROUP, LLC

   1 - Cut Line

3. Remove the bolts and the exhaust isolator.

   Courtesy of CHRYSLER GROUP, LLC

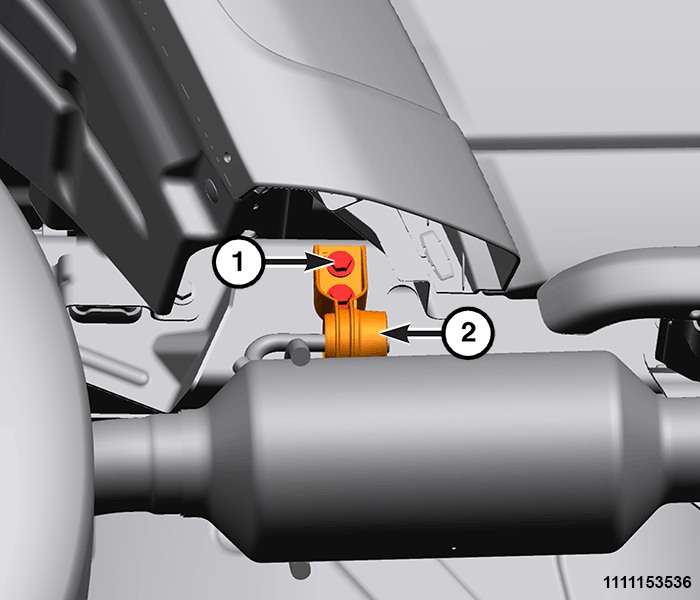

   1 - Exhaust Muffler Isolator Bolts

   2 - Exhaust Muffler Isolator

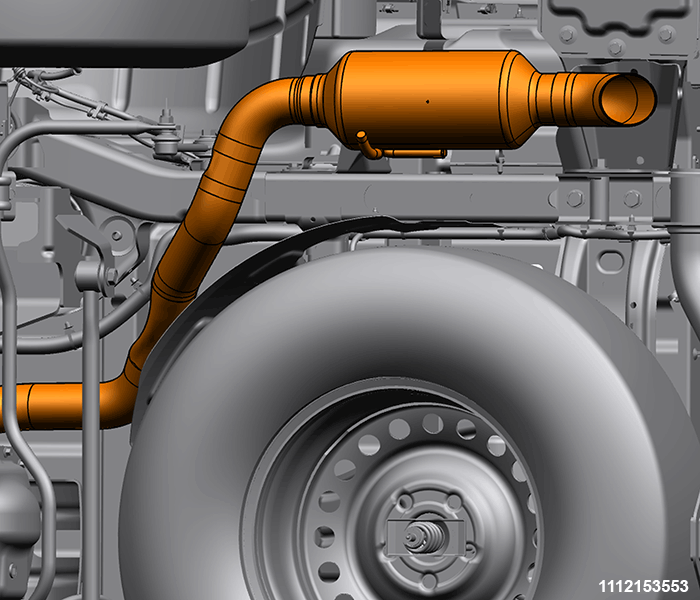

4. Remove the exhaust tailpipe from the vehicle.

   Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Use the new exhaust clamp connect the exhaust muffler to the exhaust tailpipe.
• Make sure the exhaust pipe/exhaust system is aligned and has the proper clearance. The minimum clearance is 25 mm (1 inch). Make the necessary adjustments, if needed.

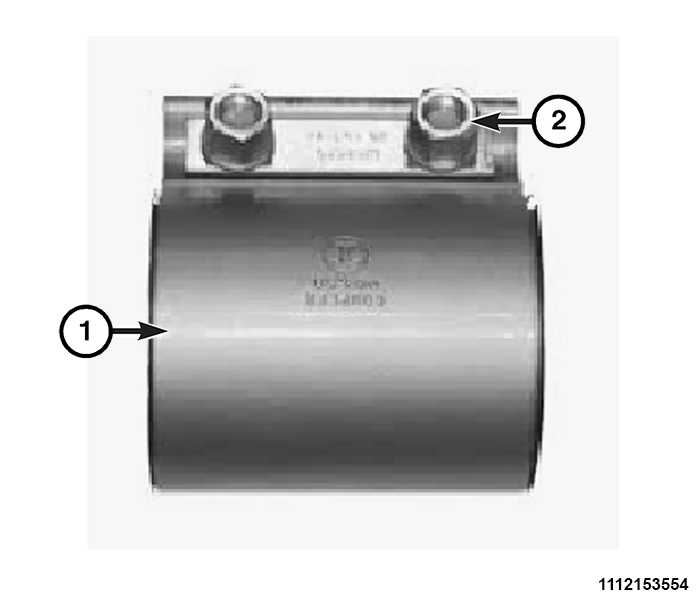

  Courtesy of CHRYSLER GROUP, LLC

  1 - New Exhaust Clamp

  2 - Nut

• Start the engine and inspect for leaks. Repair exhaust leaks as necessary.
