Catalytic Converter Heat Shield: Notes

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
   NOTE:

   Left catalytic converter removed for clarity.

2. Working above the left catalytic converter, remove the retaining nuts and the heat shield.

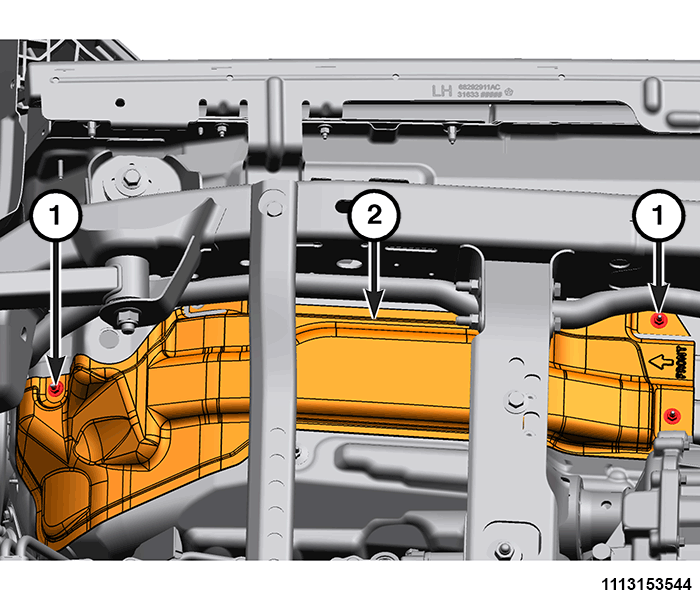

   Courtesy of CHRYSLER GROUP, LLC

   1 - Heat Shield Nuts

   2 - Heat Shield

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
