Torque Specifications - Skid Plates
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|

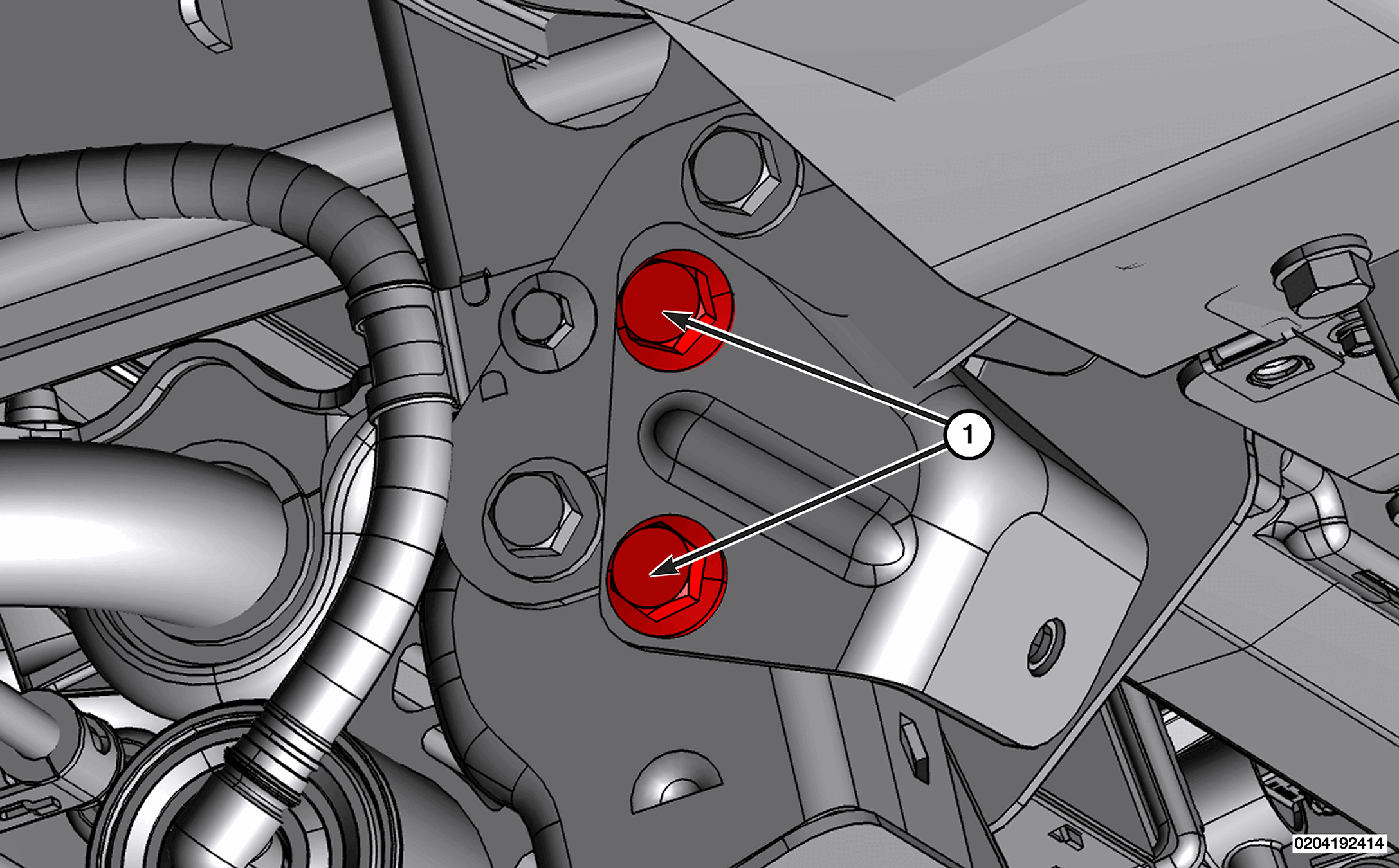

| 1 | Front Skid Plate Bracket to Frame Bracket Bolts | 50 N.m (37 Ft. Lbs.) | - |
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|

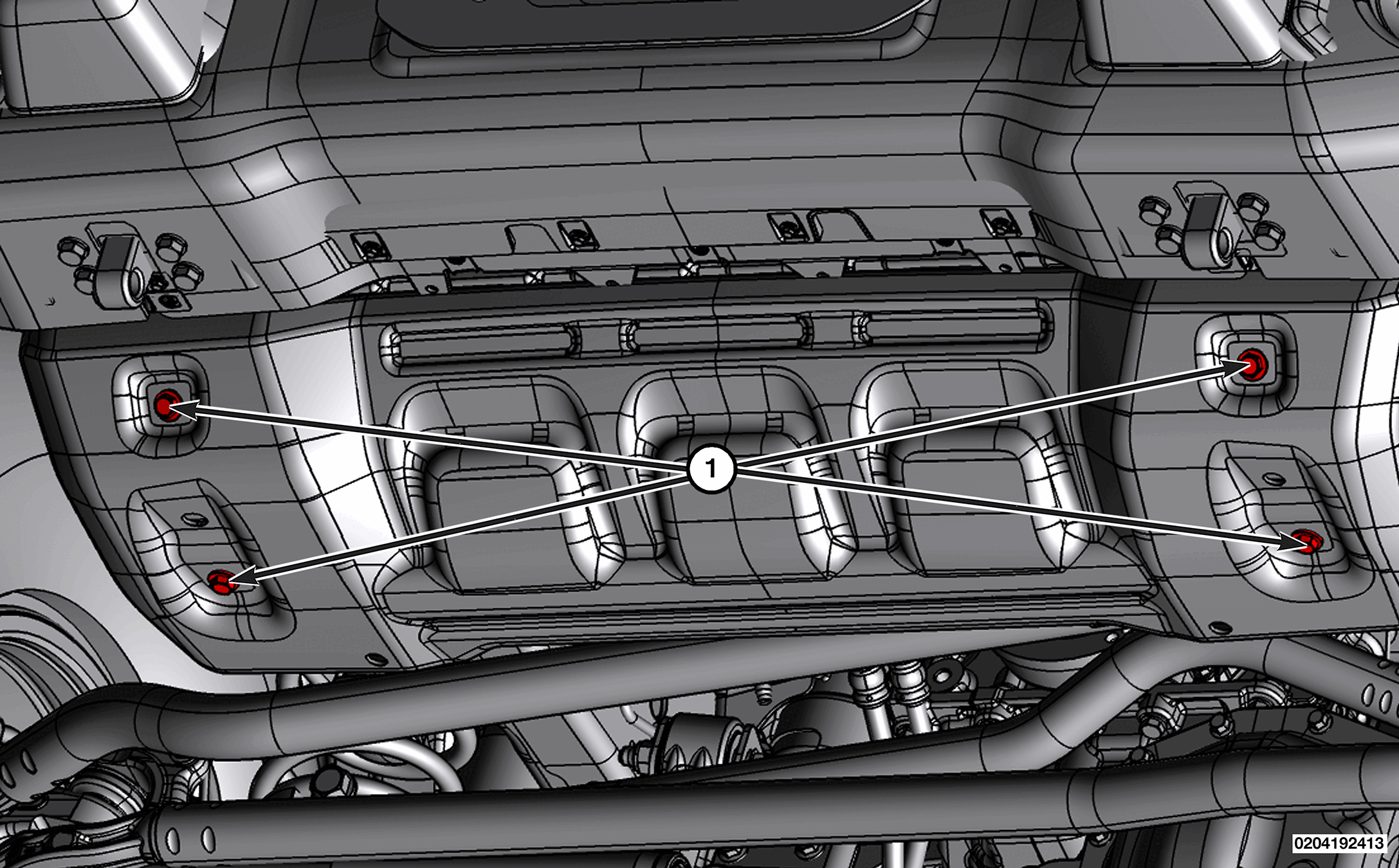

| 1 | Front Skid Plate Bolts | 25 N.m (18 Ft. Lbs.) | - |
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|

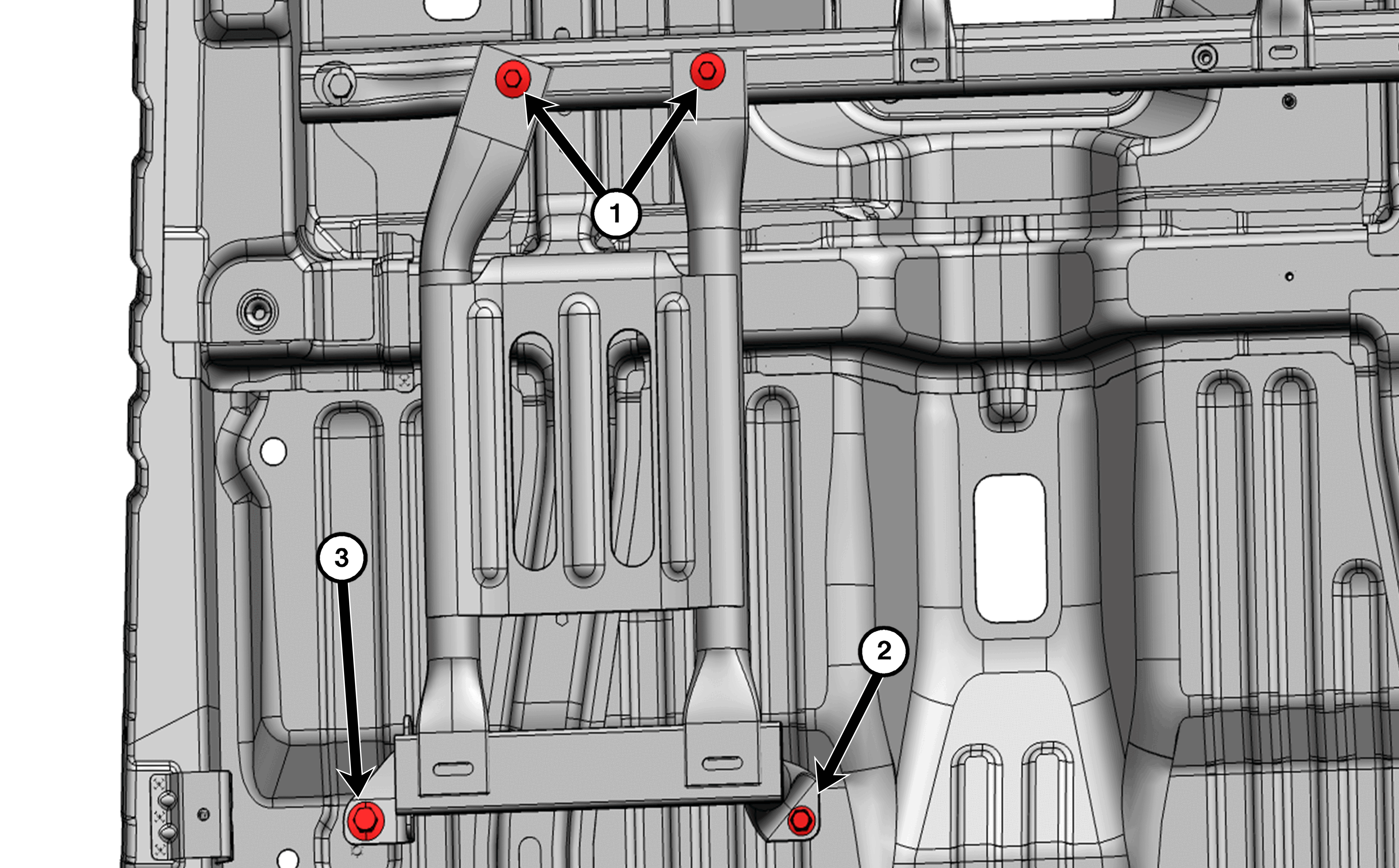

| 1 | Transfer Case Skid Plate Bolts | 75 N.m (55 Ft. Lbs.) | - |
| 2 | Transfer Case Skid Plate Frame Bolts | 75 N.m (55 Ft. Lbs.) | - |
| 3 | Transfer Case Skid Plate Fuel Tank Nut | 20 N.m (15 Ft. Lbs.) | - |
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|

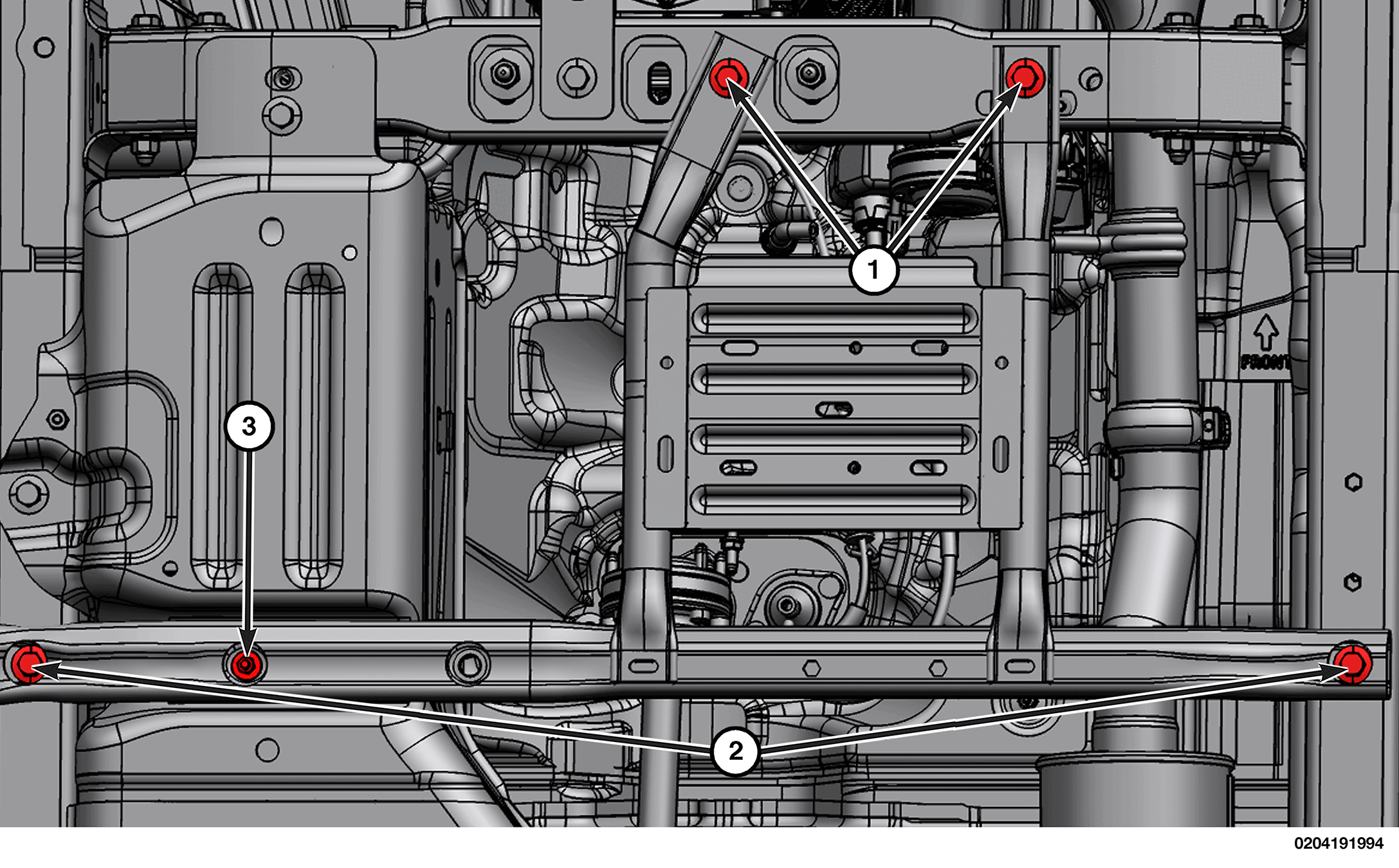

| 1 | SCR Skid Plate Front Bolts | 23 N.m (17 Ft. Lbs.) | - |
| 2 | SCR Skid Plate Outer Bolt | 62 N.m (46 Ft. Lbs.) | - |
| 3 | SCR Skid Plate Inner Bolt | 75 N.m (55 Ft. Lbs.) | - |
