Module-Driver Alert Light 1 (Standard) Connector End View (D3473A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 34729-0200

Part Description: Not Available

Connector No: D3473A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Driver Alert Light 1 Connector End View (Standard)
GCWD1225687Courtesy of CHRYSLER

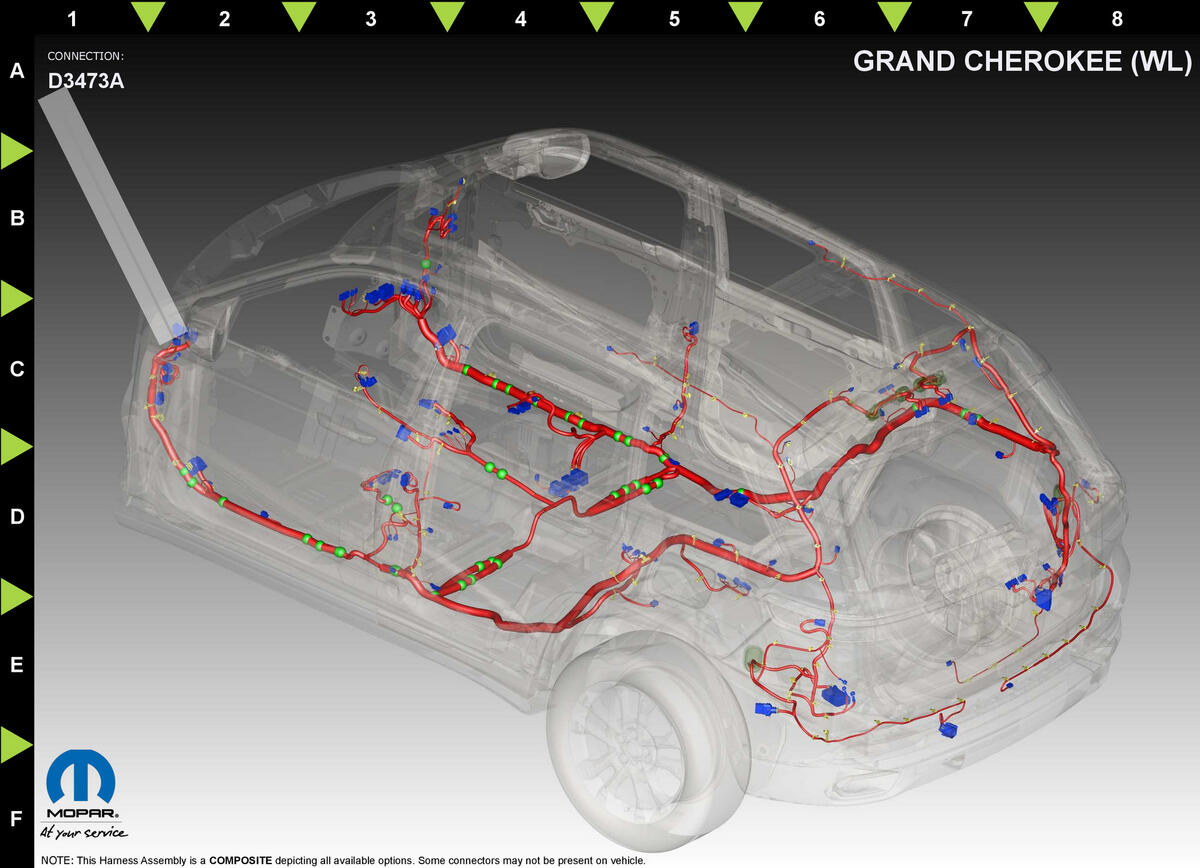

Fig 2: Module-Driver Alert Light 1 Component Location (Standard)
GCWD1295493Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 F925 PK/YE 0.50 FUSED IGNITION N/A
3 D368 DB/WH 0.35 CAN IHS (+) N/A
4 D367 WH 0.35 CAN IHS (-) N/A
6 D826 WH/BU 0.35 LIN BUS N/A
7 F522 OG/PK 0.35 LAMP DRIVER N/A
12 D368 DB/WH 0.35 CAN IHS (+) N/A
13 D367 WH 0.35 CAN IHS (-) N/A
14 Z921 BK/GY 0.75 GROUND N/A
(1) Pins not listed are not used for this connector
