Module-Rear View Mirror Display C2 (Standard) Connector End View (D6625B)

Harness-Family: HEADLINER

Color: BLACK

Gender: FEMALE

Part Number: 59Z117-C01-A

Part Description: Not Available

Connector No: D6625B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Rear View Mirror Display C2 Connector End View (Standard)

Courtesy of CHRYSLER

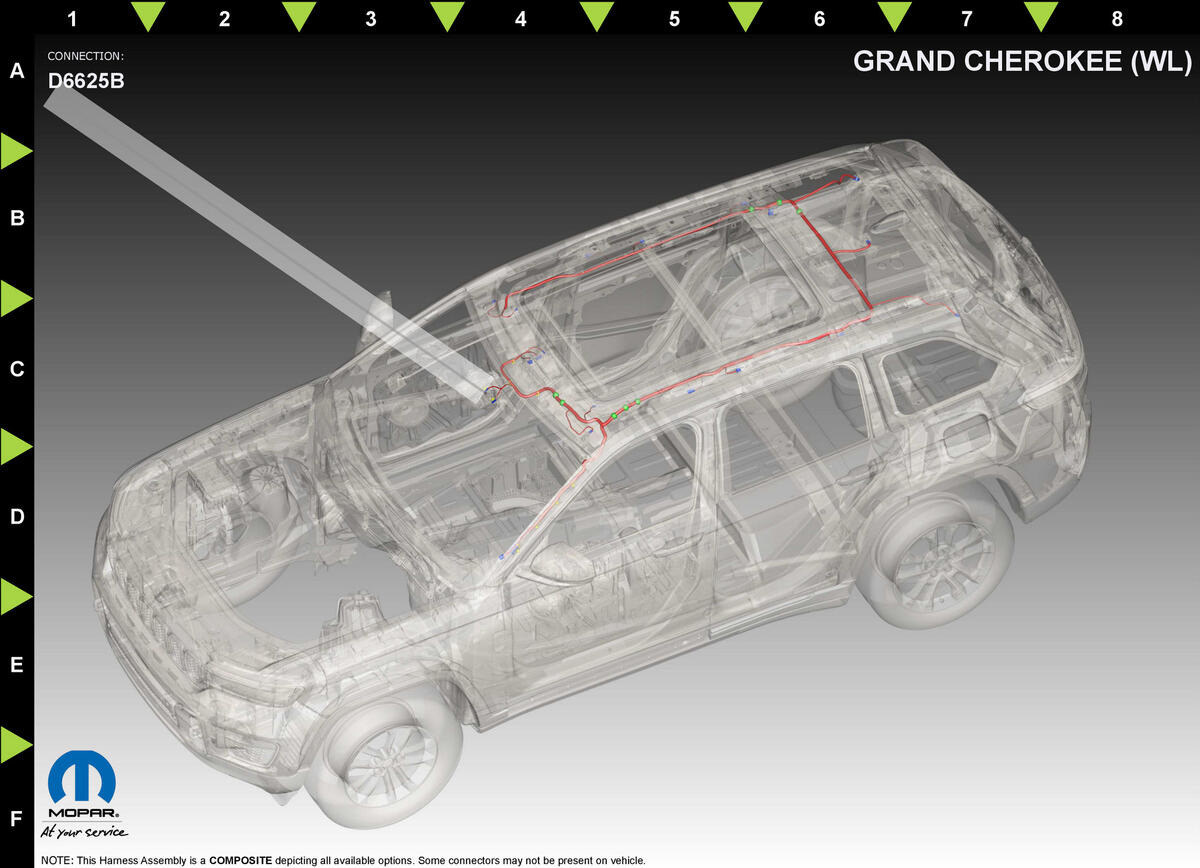

Fig 2: Module-Rear View Mirror Display C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

J239

.14

COAX CABLE

N/A

⁽¹⁾	Pins not listed are not used for this connector
