Module-Rear View Camera (Standard) Connector End View (D340A)

Harness-Family: CHMSL_Jumper

Color: BLACK

Gender: FEMALE

Part Number: 59K24K-102A4-A

Part Description: Not Available

Connector No: D340A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Rear View Camera Connector End View (Standard)

Courtesy of CHRYSLER

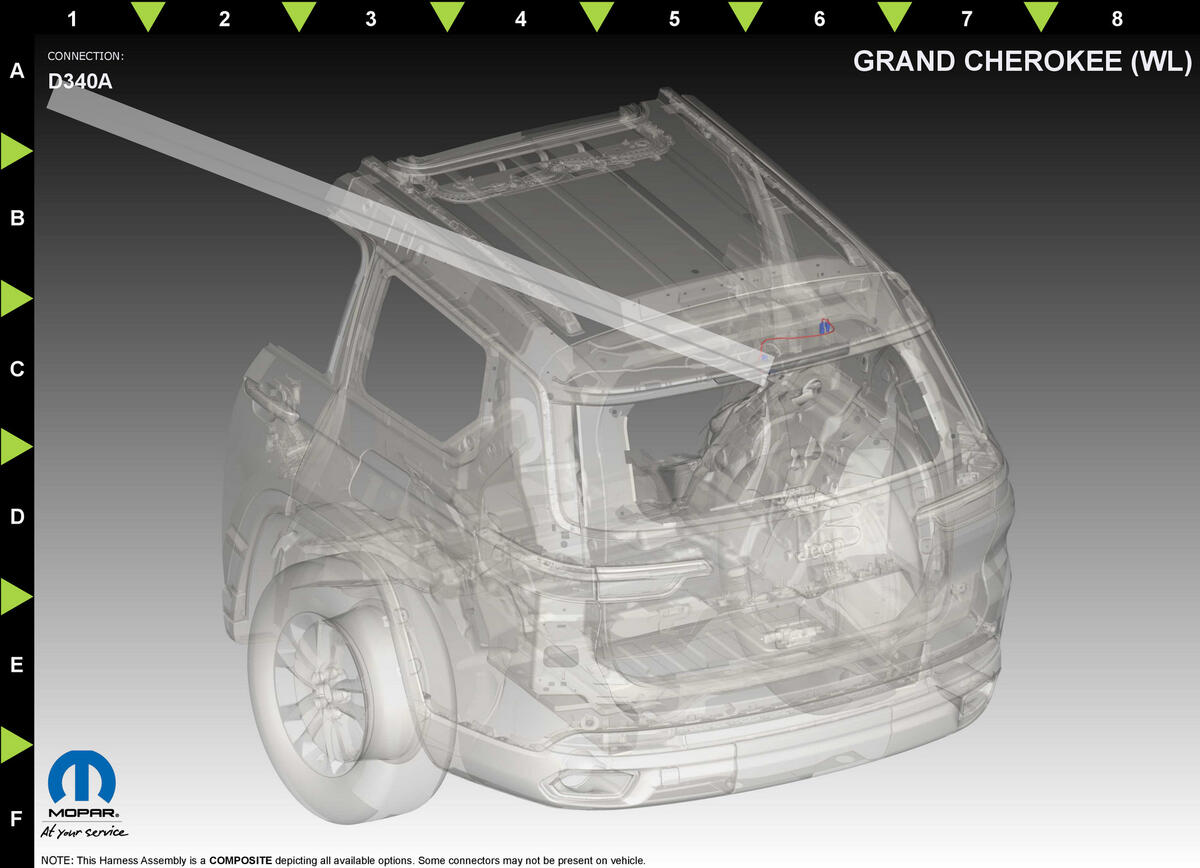

Fig 2: Module-Rear View Camera Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

J239

COAX CABLE

N/A

⁽¹⁾	Pins not listed are not used for this connector
