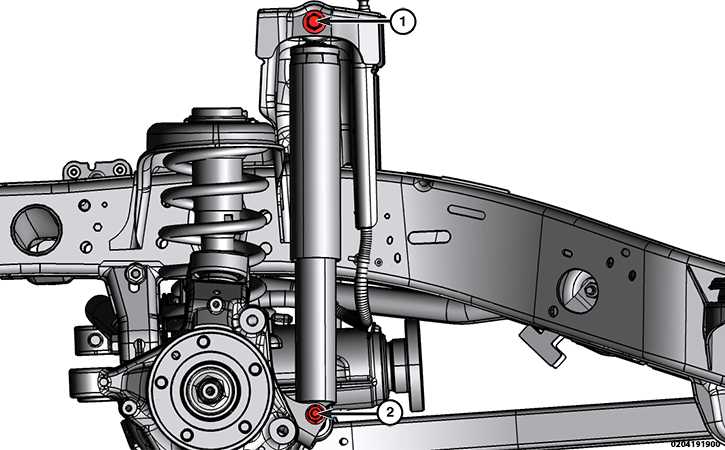

SHOCK ABSORBERS
CALLOUT
DESCRIPTION
SPECIFICATION
COMMENT
1
Shock Absorber Upper Bolt
140 N. m (103 Ft. Lbs.)
-
2
Shock Absorber Lower Bolt
100 N. m (77 Ft. Lbs.)
-
Courtesy of CHRYSLER GROUP, LLC
