Removal And Installation: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the seat side shield. Refer to SIDE SHIELDS, SEAT CUSHION, FRONT, REMOVAL AND INSTALLATION .

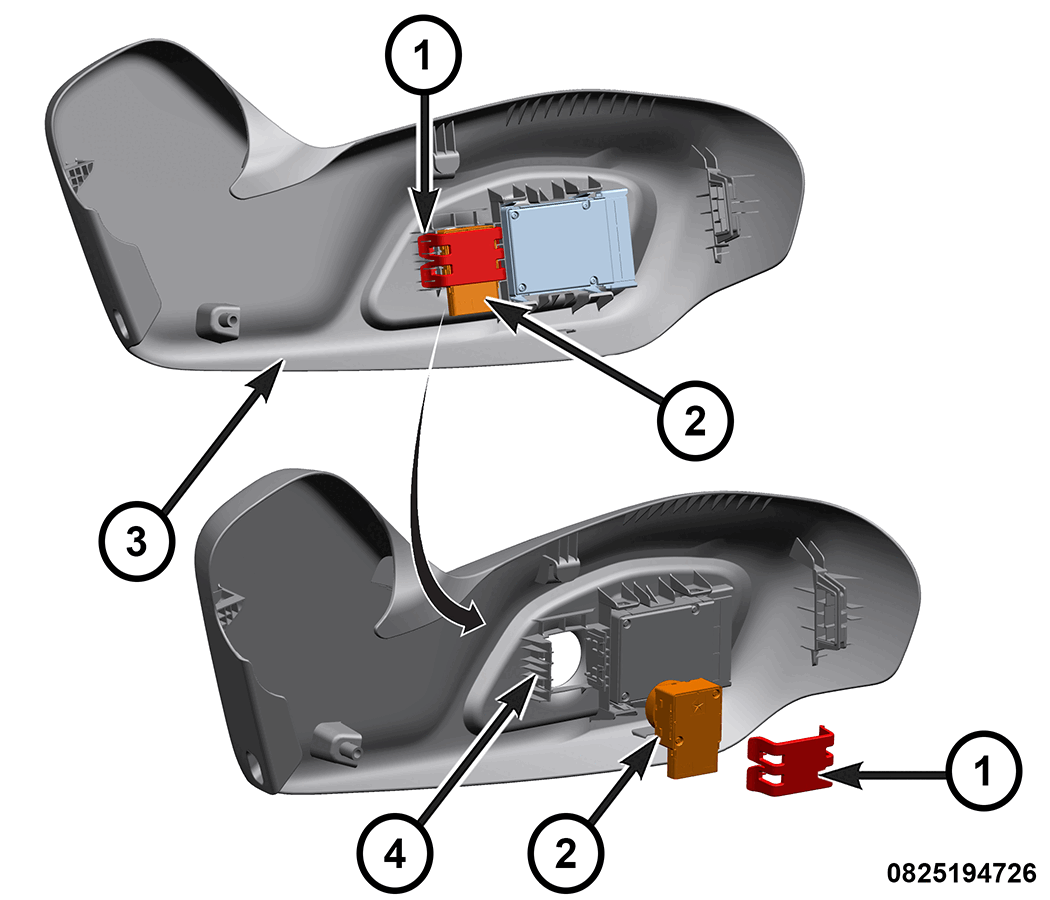

    GC0206652Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the lumbar control switch wire harness connector.
  4. Remove the clamp (1), if equipped from the seat side shield (3) by disengaging the retainers (4).
  5. Remove the lumbar switch (2) by disengaging the retainers (4).
