Removal And Installation: Installation

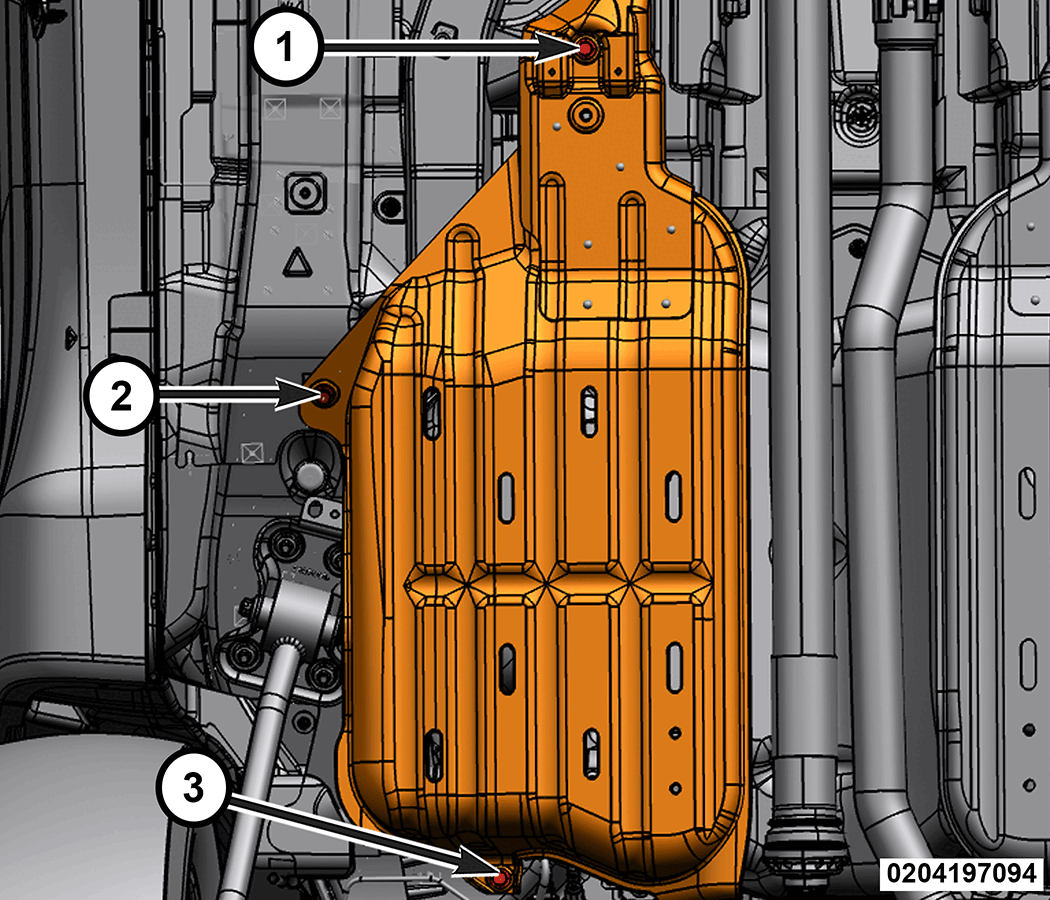

Fig 1: Fuel Tank Skid Plate Bolts Tightening Sequence
GC0206768Courtesy of CHRYSLER GROUP, LLC
  1. Position the fuel tank skid plate to the vehicle.
  2. Install the fuel tank skid plate bolts (1, 2, 3) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  3. Remove the support and lower the vehicle.
