Cruise Control Switch

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to 2.0L, BATTERY DISCONNECT AND CONNECT - SINGLE 12V BATTERY SYSTEM and/or 2.0L, BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM and/or 2.0L, 12-VOLT BATTERY DISCONNECT/CONNECT - PHEV and/or 3.0L, BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM and/or 3.6L, BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM and/or 3.6L, HYBRID, BATTERY DISCONNECT AND CONNECT - SINGLE 12V BATTERY SYSTEM and/or 6.4L, BATTERY DISCONNECT AND CONNECT - SINGLE 12V BATTERY SYSTEM .
2. Remove the remote radio switch Refer to SWITCH, REMOTE RADIO, REMOVAL AND INSTALLATION .

   .

3. Remove the steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .

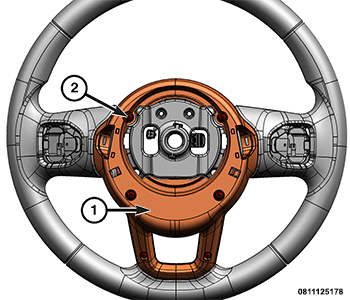

   Courtesy of CHRYSLER GROUP, LLC

   1 - Back Cover

   2 - Fastener

4. Remove the fasteners securing the steering wheel back cover to the steering wheel, then remove the steering wheel back cover from the steering wheel.
5. Pull the steering wheel bezel away from the steering wheel and disconnect the cruise control switch and Electronic Vehicle Information Center (EVIC) switch wire harness connectors, then remove the bezel with switches.

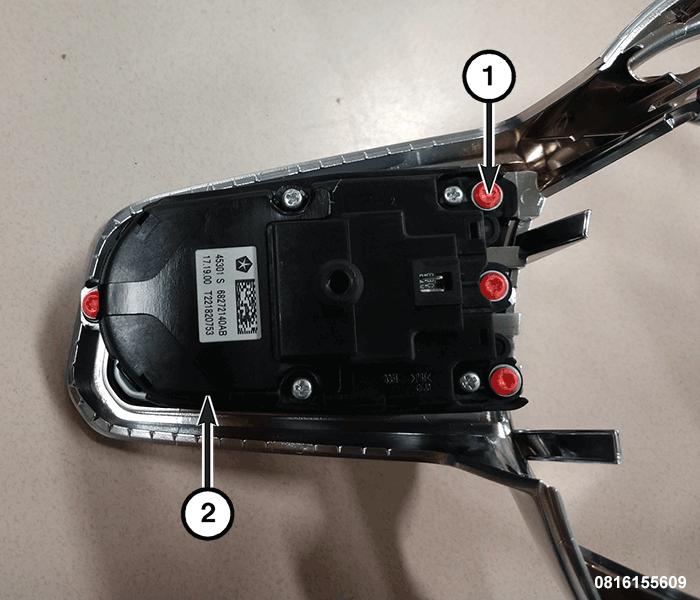

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fastener

   2 - Switch

6. Remove the fasteners securing the cruise control switch to the bezel and remove the cruise control switch from the bezel.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Position the cruise control switch to the steering wheel bezel.
• Position the bezel to the steering wheel and connect the cruise control and EVIC switch wire harness connectors.
• Tighten the fasteners securely.
