Global Telematics Box Module

REMOVAL

1. Disconnect and isolate the negative battery cable(s). Refer to 2.0L, BATTERY DISCONNECT AND CONNECT - SINGLE 12V BATTERY SYSTEM and/or 2.0L, BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM and/or 2.0L, 12-VOLT BATTERY DISCONNECT/CONNECT - PHEV and/or 3.0L, BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM and/or 3.6L, BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM and/or 3.6L, HYBRID, BATTERY DISCONNECT AND CONNECT - SINGLE 12V BATTERY SYSTEM and/or 6.4L, BATTERY DISCONNECT AND CONNECT - SINGLE 12V BATTERY SYSTEM .
2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

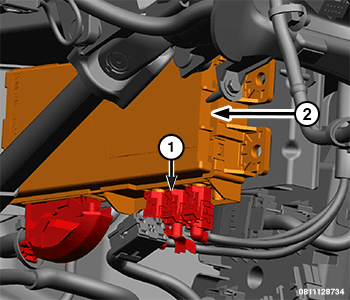

   Courtesy of CHRYSLER GROUP, LLC

   1 - Wire Harness Connector

3. Disconnect the wire harness connectors from the Global Telematics Box Module (TBM2).

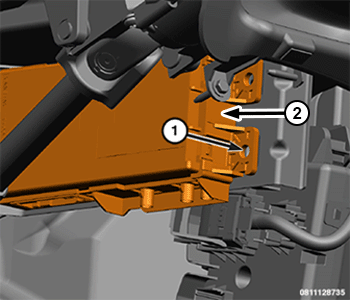

   Courtesy of CHRYSLER GROUP, LLC

   1 - Fastener

4. Remove the fasteners from the TBM2 that secure the TBM2 to the bracket.
5. Remove the TBM2 from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Tighten the fasteners to the proper torque specifications.

  Refer to TORQUE SPECIFICATIONS .
