Description
>>
Description - NOX Sensor
>>
Notes
Description - NOX Sensor: Notes
Courtesy of CHRYSLER GROUP, LLC

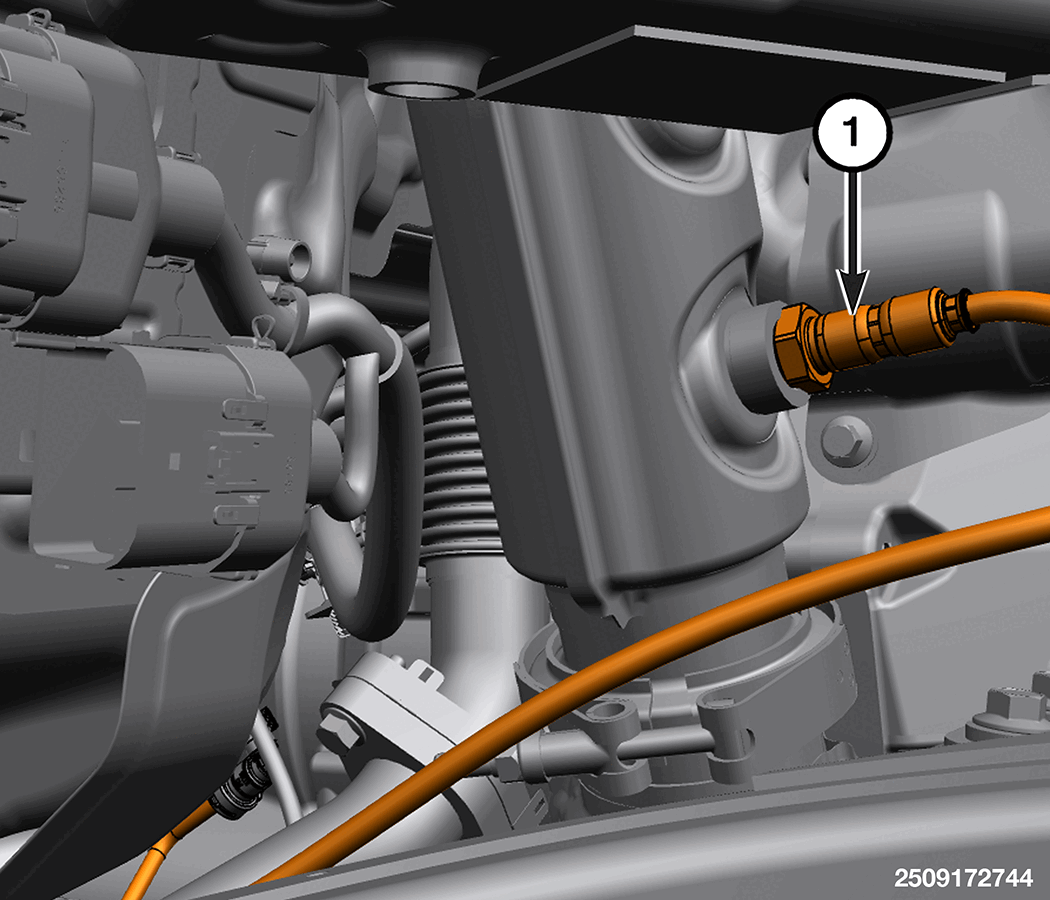

1 - NOx Sensor 1/1
The NOx sensor 1/1 is mounted at the elbow of the Diesel Oxidation Catalyst/Diesel Particulate Filter and measures incoming NOx gases.
Courtesy of CHRYSLER GROUP, LLC

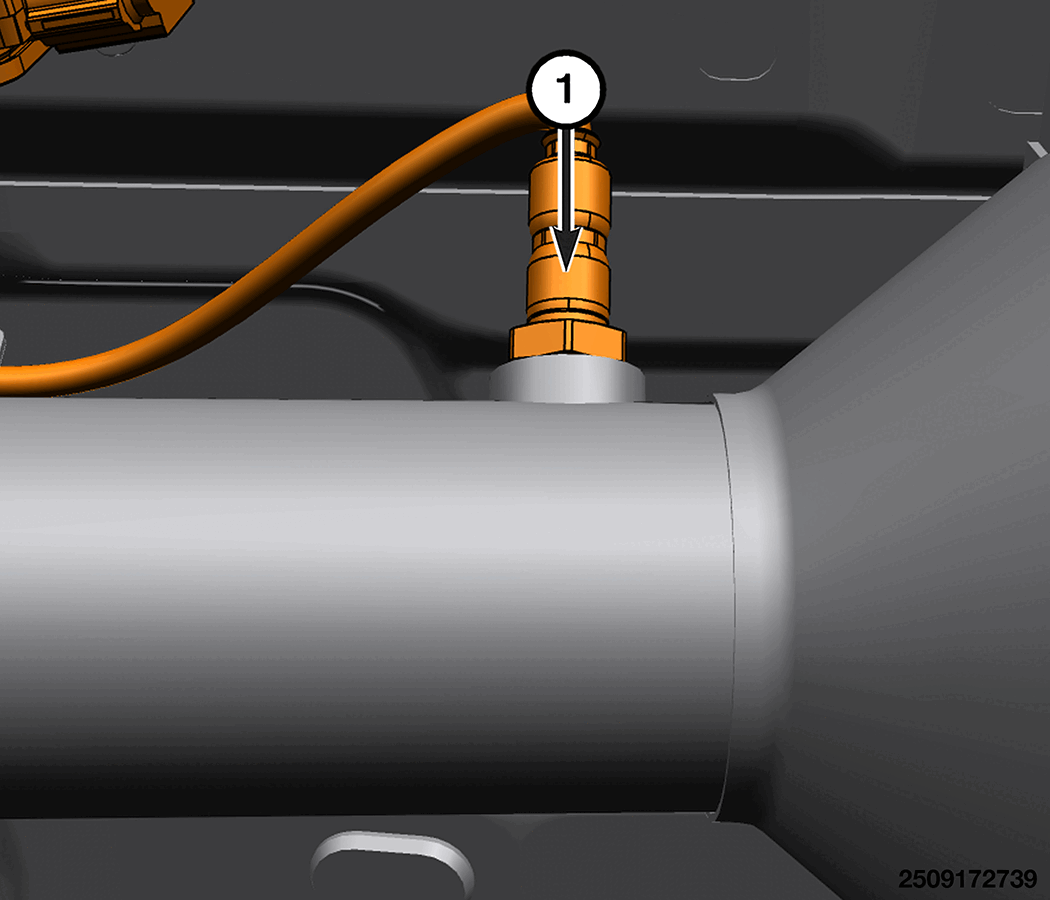

1 - NOx Sensor 1/2
The Post-NOx sensor 1/2 is mounted at the rear outlet of the Selective Catalytic Reduction (SCR) Catalyst and measures outgoing NOx gases.
Courtesy of CHRYSLER GROUP, LLC
