Removal And Installation

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Remove the right front wheel and splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
  2. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  3. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
  4. Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION  .
  5. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION  .
  6. Remove the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
  7. Remove the vibration damper. Refer to DAMPER, VIBRATION, REMOVAL AND INSTALLATION  .
  8. Remove the water pump pulley. Refer to PUMP, WATER, REMOVAL AND INSTALLATION .
  9. Remove the generator Refer to GENERATOR, REMOVAL AND INSTALLATION .
    GC0163665Courtesy of CHRYSLER GROUP, LLC

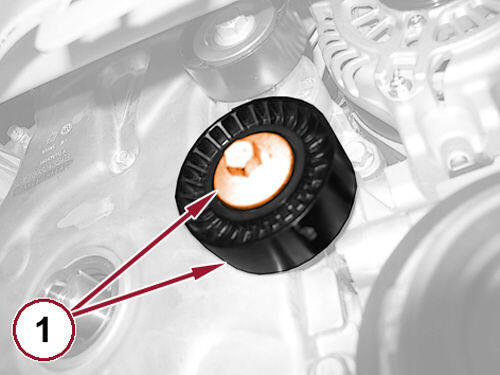

  10. Remove the bolt (1) and remove the accessory drive belt idler pulley.
    GC0163390Courtesy of CHRYSLER GROUP, LLC

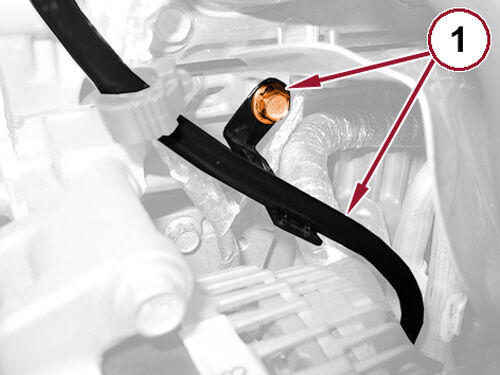

  11. Remove the bolt (1) and remove the engine oil dipstick tube.
    GC0165309Courtesy of CHRYSLER GROUP, LLC

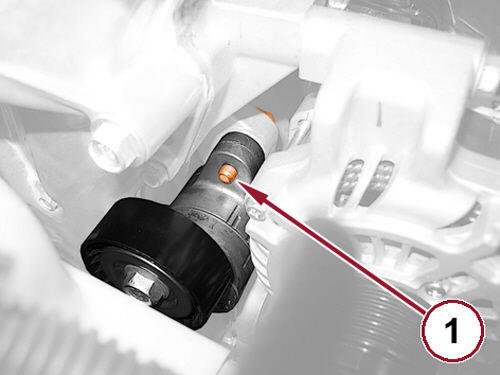

  12. Remove the top bolt (1) from the accessory drive belt tensioner.

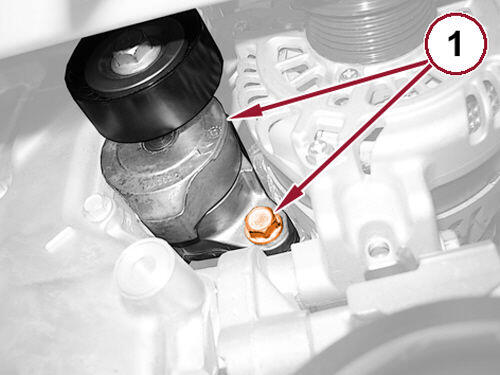

    GC0164729Courtesy of CHRYSLER GROUP, LLC
  13. Remove the bolt (1) and remove the accessory drive belt tensioner.
    GC0190117Courtesy of CHRYSLER GROUP, LLC

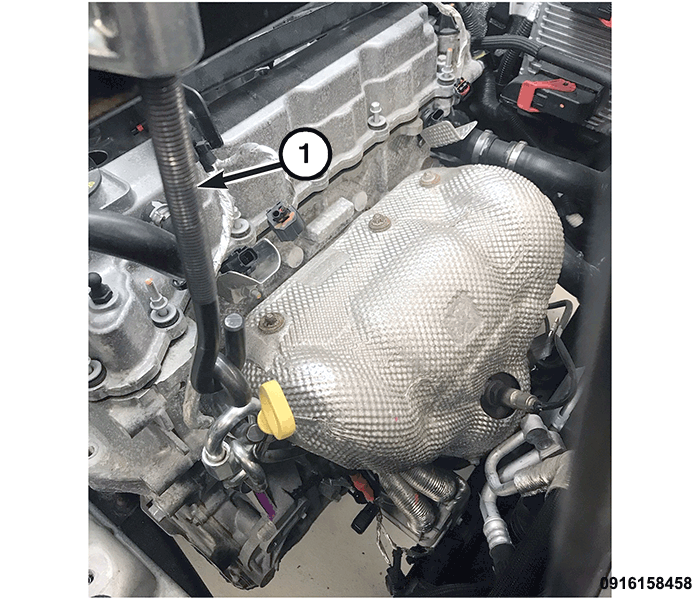

  14. Assemble the (Special Tool No. 8534C, Fixture, Driveline Support) (1).
    GC0164554Courtesy of CHRYSLER GROUP, LLC

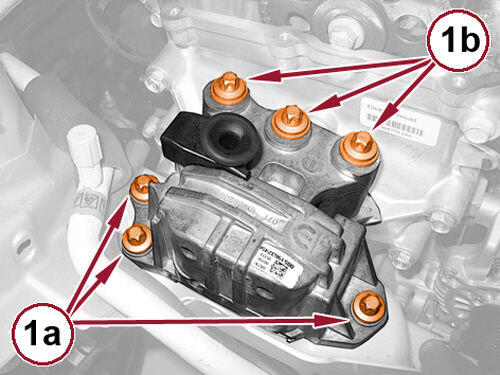

  15. Remove the bolts (1a) and (1b) and remove the right engine mount isolator.
    GC0164312Courtesy of CHRYSLER GROUP, LLC

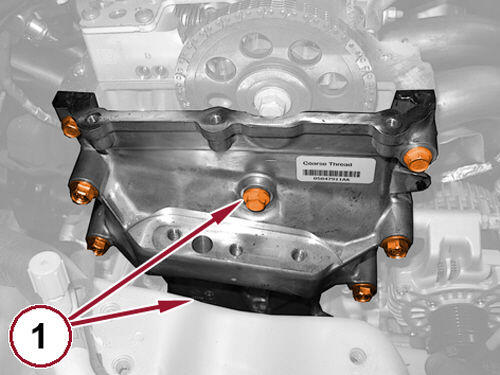

  16. Remove the upper bolts (1) securing the engine timing cover to the cylinder head.

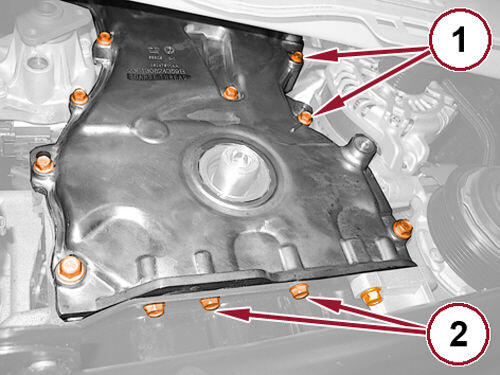

    GC0163810Courtesy of CHRYSLER GROUP, LLC
  17. Remove the bolts (1) securing the engine timing cover to the engine block.
  18. Remove the bolts (2) securing the engine timing cover to the engine oil pan.
    GC0164660Courtesy of CHRYSLER GROUP, LLC

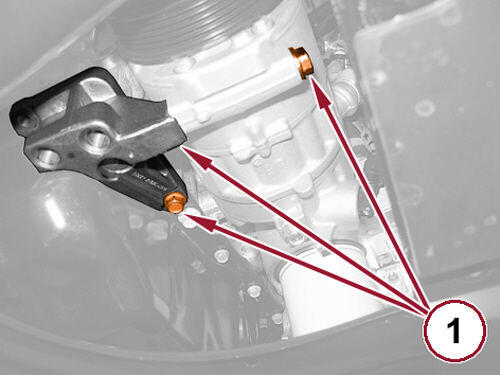

  19. Remove the bolts (1) and remove the A/C compressor support bracket.
    GC0187039Courtesy of CHRYSLER GROUP, LLC

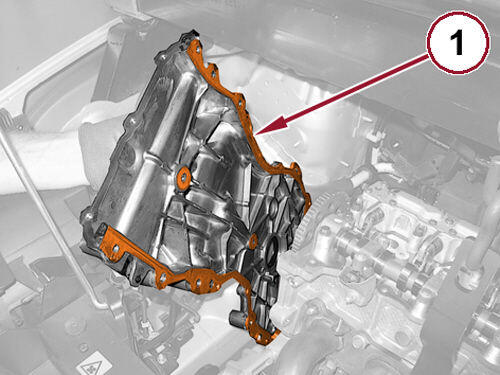

  20. Use a suitable tool (1) to release the timing chain cover from the sealant. To avoid bending the timing chain cover, release the lower flange first then release the upper flange.
    GC0165802Courtesy of CHRYSLER GROUP, LLC
  21. Remove the engine timing cover (1).
  22. Remove the residual silicone gasket material from the cover and check the integrity of the centering bushings.
  23. Pry off and remove the front crankshaft oil seal from the timing cover.

INSTALLATION

NOTE:

Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® RTV MS-GF44 or Mopar® Axle RTV MS-GF46 when specified may result in engine fluid leakage.

NOTE:

Following the application of Mopar® RTV MS-GF44 or Mopar® Axle RTV MS-GF46 to the gasket surfaces, the components must be assembled within 10 minutes and the attaching fasteners must be tightened to specification within the next 10 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.

GC0165102Courtesy of CHRYSLER GROUP, LLC
  1. Apply Mopar® Axle RTV MS-GF46  to the engine block and cylinder head to timing cover mating surfaces (1) as shown in illustration.

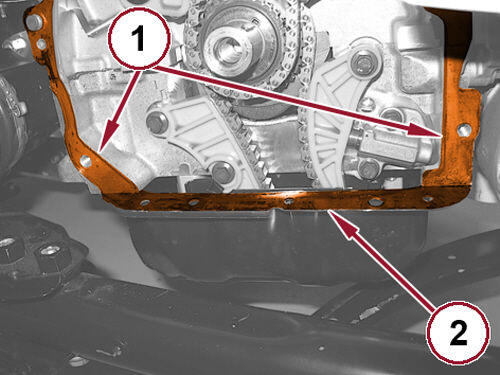

    GC0166012Courtesy of CHRYSLER GROUP, LLC
  2. Continue applying Mopar® Axle RTV MS-GF46  to the engine block and cylinder head to timing cover mating surfaces (1) as shown in the figure.
  3. Apply a bead (2 mm) of Mopar® RTV MS-GF44  to the oil pan (2) as shown in illustration.

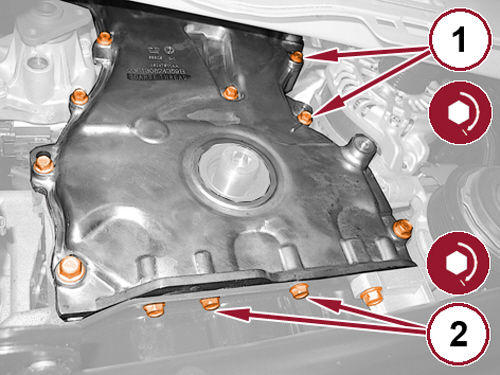

    GC0163306Courtesy of CHRYSLER GROUP, LLC
  4. Working from the wheel well, install the engine timing cover and tighten the lower mounting bolts (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  5. Install the A/C compressor support bracket and tighten the bolts to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  6. Tighten the engine timing cover to oil pan bolts (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
    GC0164656Courtesy of CHRYSLER GROUP, LLC
  7. Tighten the engine timing cover to cylinder head bolts (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
    GC0163703Courtesy of CHRYSLER GROUP, LLC
  8. Install a new front crankshaft oil seal with the (Special Tool No. 9506, Installer, Oil Seal) (1).

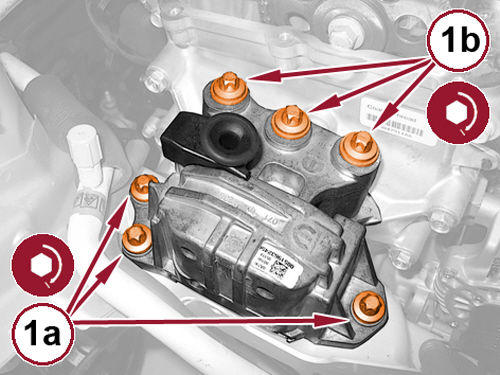

    GC0166049Courtesy of CHRYSLER GROUP, LLC
  9. Install the right engine mount isolator and tighten the bolts (1a) and (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  10. Remove the (Special Tool No. 8534C, Fixture, Driveline Support).
    GC0165128Courtesy of CHRYSLER GROUP, LLC
  11. Install the accessory drive belt tensioner (1) and tighten the bolts to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
    GC0166120Courtesy of CHRYSLER GROUP, LLC
  12. Install the accessory drive belt idler pulley (1) and tighten the bolt to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  13. Install the generator Refer to GENERATOR, REMOVAL AND INSTALLATION .
  14. Install the water pump pulley. Refer to PUMP, WATER, REMOVAL AND INSTALLATION .
  15. Install the vibration damper. Refer to DAMPER, VIBRATION, REMOVAL AND INSTALLATION  .
  16. Install the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
  17. Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION  .
  18. Install the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION  .
  19. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
  20. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  21. Install the right front splash shield and wheel. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
  22. Remove the support and lower the vehicle.
