Switch-Power Liftgate-Rear (Standard) Connector End View (D2365A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 7283-9016-30

Part Description: 4P 0.64 YESC KAIZEN 1 ROW ASSEMBLY

Connector No: D2365A

Option: Standard

Repair Kit Part Number: 68068636AA

Cavity Count: 4

Fig 1: Switch-Power Liftgate-Rear Connector End View (Standard)

Courtesy of CHRYSLER

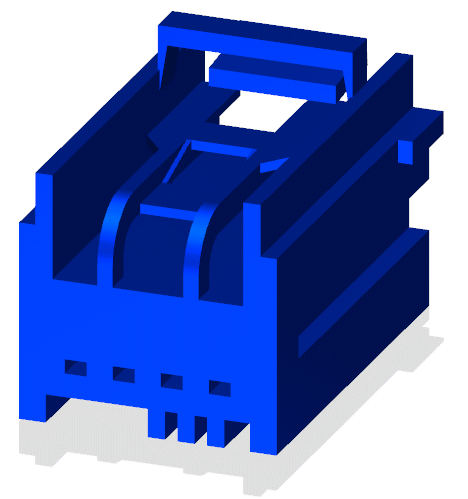

Fig 2: Switch-Power Liftgate-Rear Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch-Power Liftgate-Rear Wire Insertion View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	G29	VT	0.50	LIFTGATE SWITCH SIGNAL	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	Q901	OG/VT	0.50	LOGIC GROUND	N/A
