Dual Battery Switch Module (DBSM)

REMOVAL

1. Remove the right splash shield. Refer to SHIELD, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

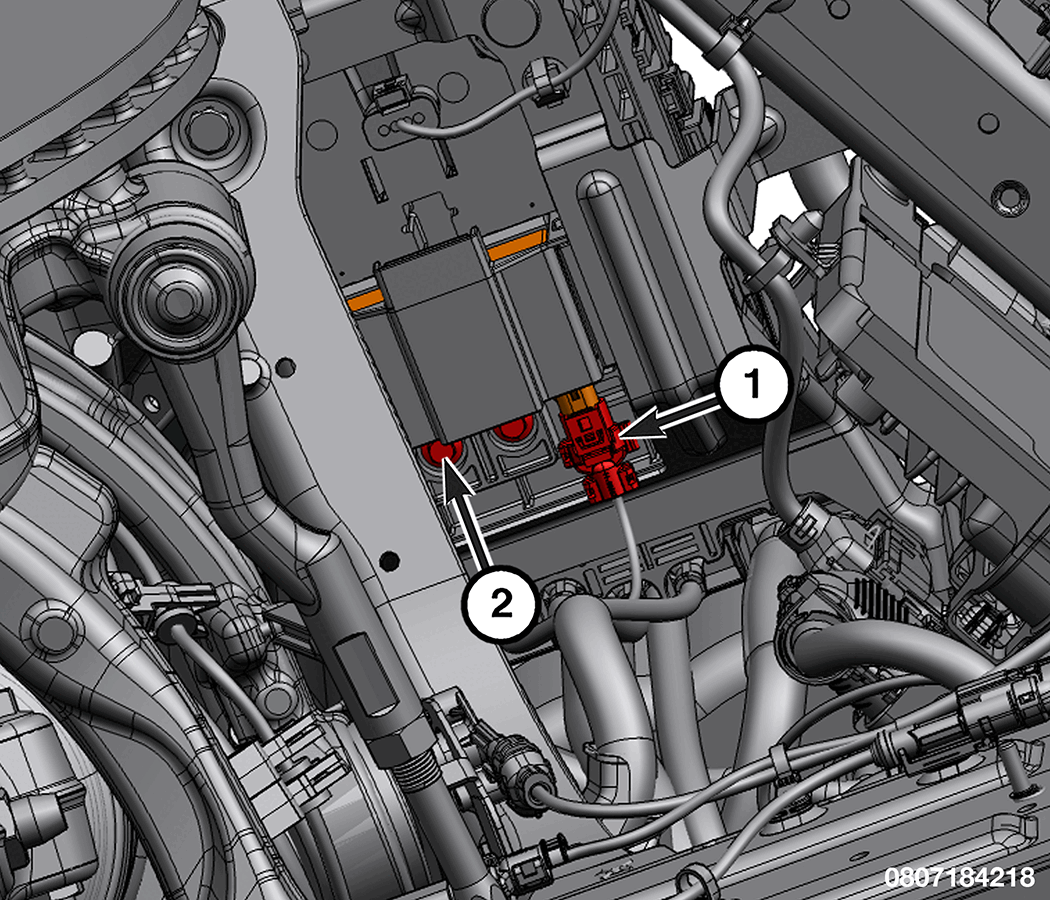

2. Disconnect the electrical connector (1).
3. Remove the bolts (2) that secure the Dual Battery Switch Module (DBSM) to the Power Distribution Center (PDC).

   Courtesy of CHRYSLER GROUP, LLC

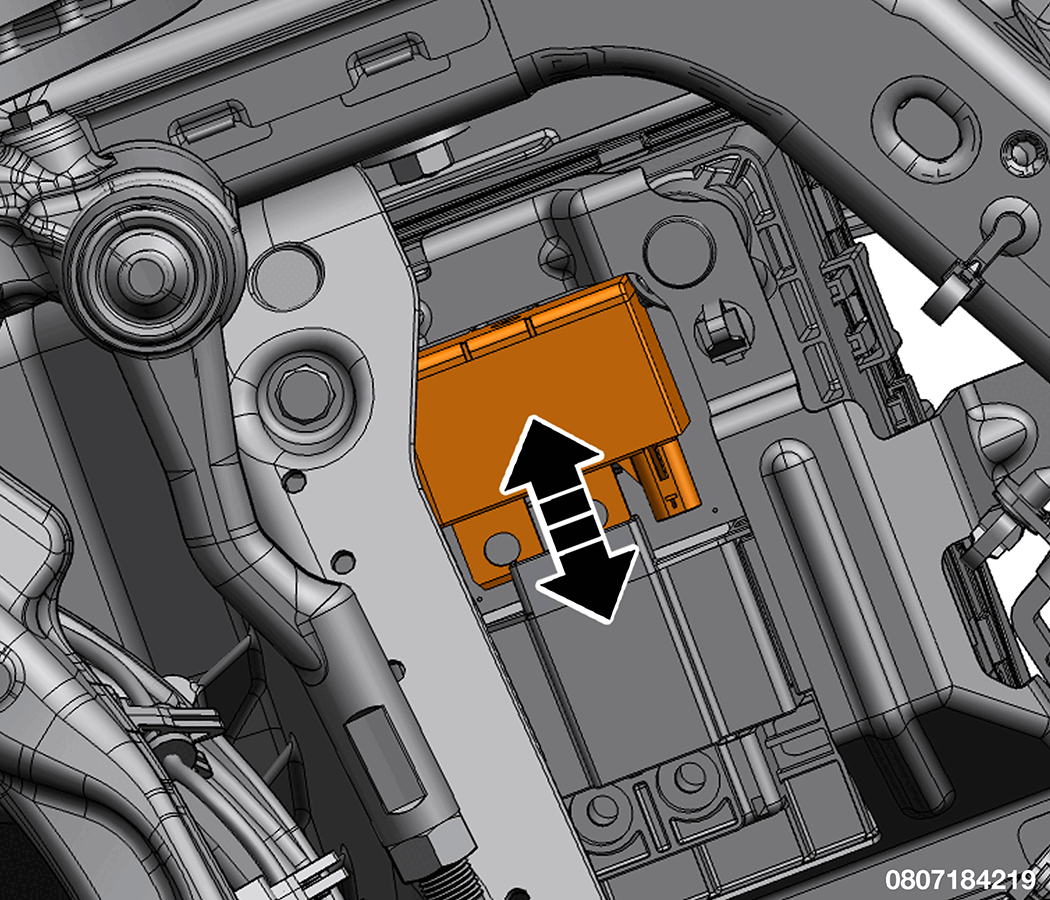

4. Slide the Module out of the PDC.

INSTALLATION

1. Install the DBSM into the PDC, and tighten the bolts to the proper torque specifications. Refer to TORQUE SPECIFICATIONS  .
2. Connect the electrical connection.
3. Install the right splash shield. Refer to SHIELD, REMOVAL AND INSTALLATION .
