Module-Rear View Camera (Standard) Connector End View (D340A)

Harness-Family: CHMSL_Jumper

Color: BLACK

Gender: FEMALE

Part Number: 59K24K-102A4-A

Part Description: Not Available

Connector No: D340A

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 1

Fig 1: Module-Rear View Camera Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Rear View Camera Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Rear View Camera Wire Insertion View (Standard)

Courtesy of CHRYSLER

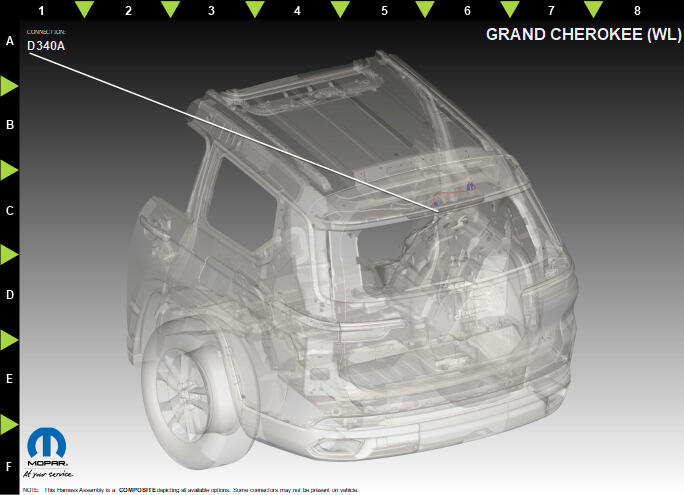

Fig 4: Module-Rear View Camera Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	J239	BK	NA	COAX CABLE	N/A
