Module-Ride Height Switch (Standard) Connector End View (D2788A)

Harness-Family: CONSOLE_CENTER

Color: BLACK

Gender: FEMALE

Part Number: 1456983-3

Part Description: Not Available

Connector No: D2788A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Module-Ride Height Switch Connector End View (Standard)

Courtesy of CHRYSLER

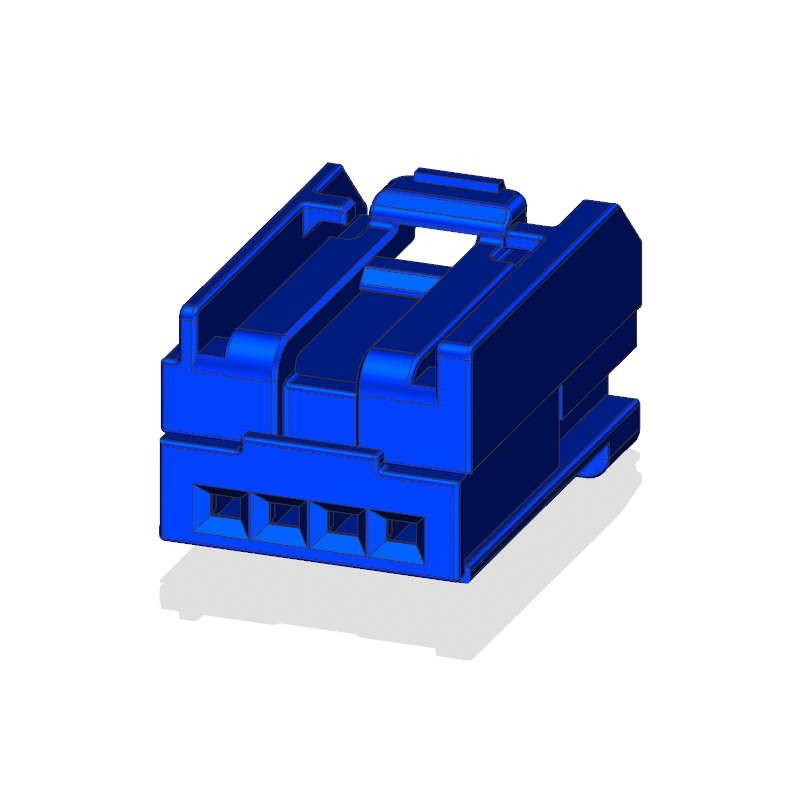

Fig 2: Module-Ride Height Switch Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Ride Height Switch Wire Insertion View (Standard)

Courtesy of CHRYSLER

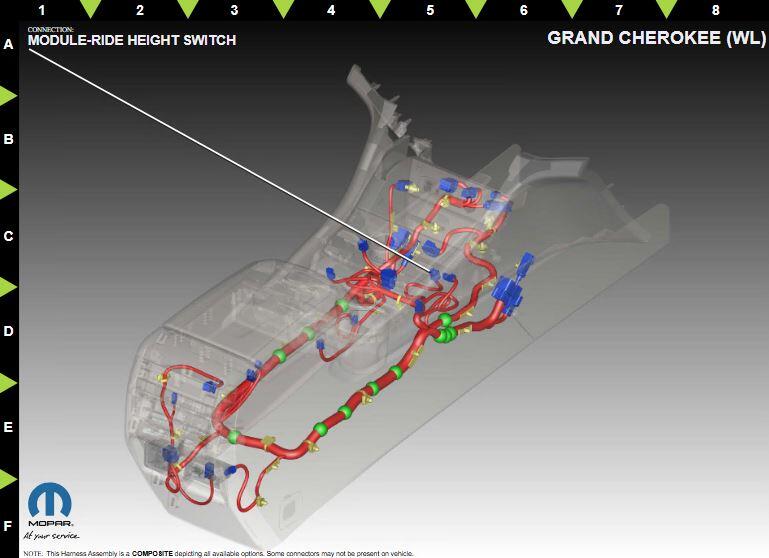

Fig 4: Module-Ride Height Switch Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	A195	RD/YE	0.50	FUSED B(+)	N/A
2	D454	WH	0.35	LIN BUS	N/A
3	Z914	BK	0.50	GROUND	N/A
4	N0	NA	0	NO CONNECT	N/A
