Module-Rear View Mirror Display C2 (Standard) Connector End View (D6625B)

Harness-Family: HEADLINER

Color: BLACK

Gender: FEMALE

Part Number: 59Z117-C01-A

Part Description: Not Available

Connector No: D6625B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 1

Fig 1: Module-Rear View Mirror Display C2 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Rear View Mirror Display C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Rear View Mirror Display C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

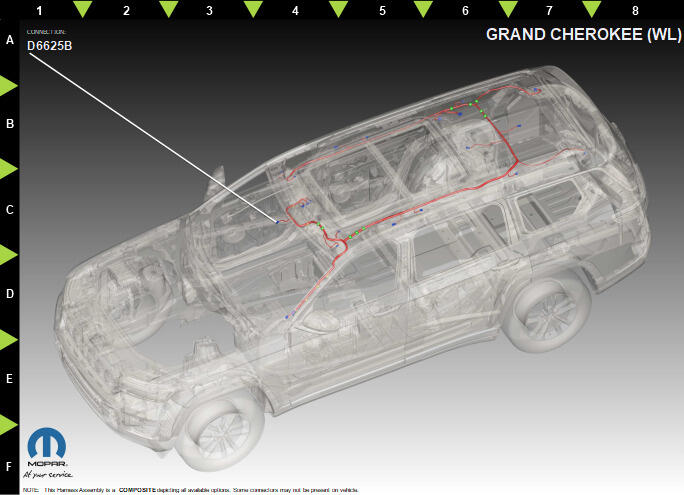

Fig 4: Module-Rear View Mirror Display C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	J239	BK	.14	COAX CABLE	N/A
