Special Tools

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

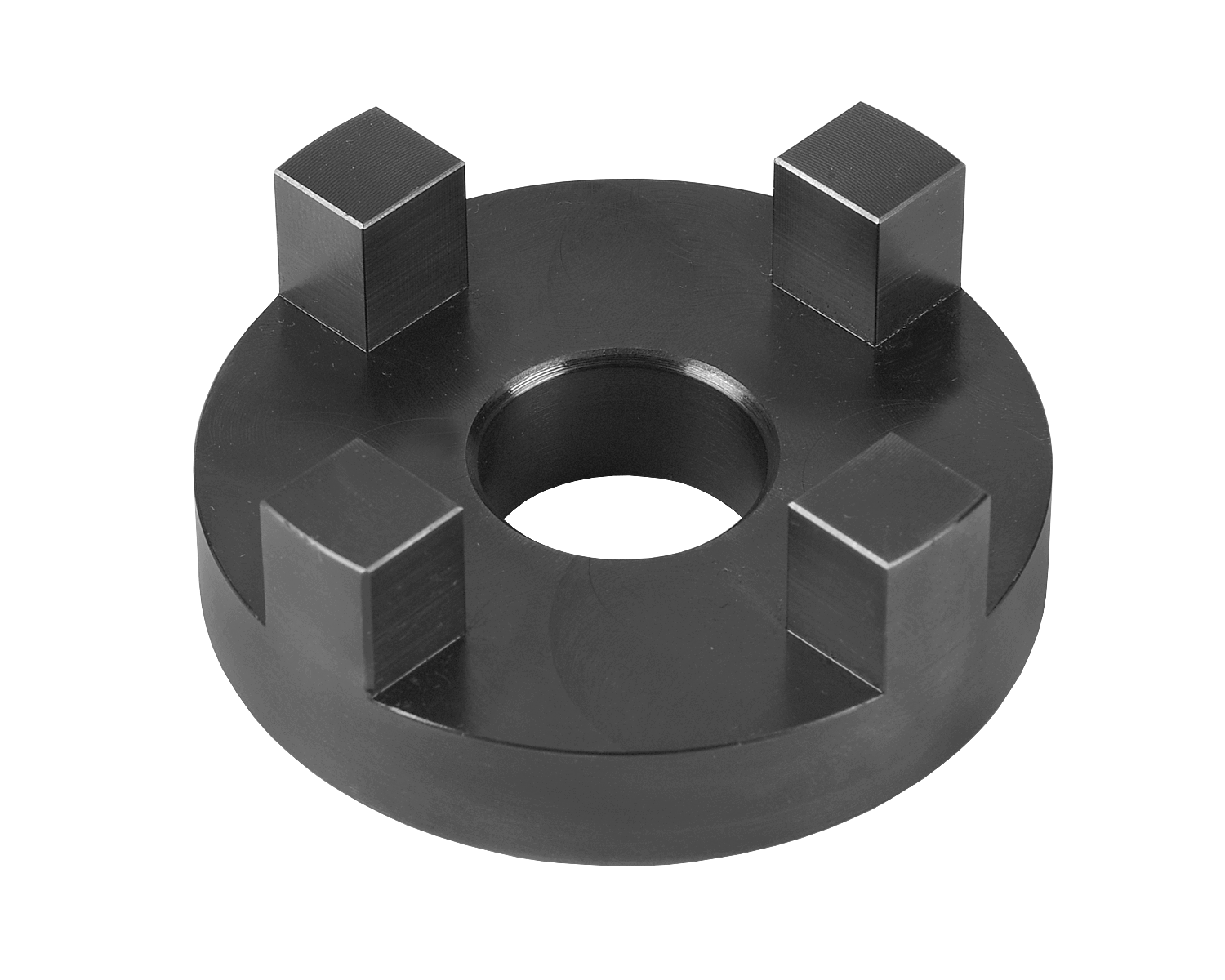

Courtesy of CHRYSLER GROUP, LLC	2026200170 - Installer, Bushing Large
Courtesy of CHRYSLER GROUP, LLC	2026300170-C - Support, Bushing Large
Courtesy of CHRYSLER GROUP, LLC	2026800170-C - Support, Bushing Small
Courtesy of CHRYSLER GROUP, LLC	2026600170 - Installer, Bushing Small
Courtesy of CHRYSLER GROUP, LLC	2026400170 - Installer, Bushing Medium
Courtesy of CHRYSLER GROUP, LLC	2026500170-C - Support, Bushing Medium
Courtesy of CHRYSLER GROUP, LLC	2026200170 - Installer, Bushing Large
Courtesy of CHRYSLER GROUP, LLC	8534C - Fixture, Driveline Support (Originally Shipped In Kit Number(s) 8534, 8534B, 8849, 9565.)
Courtesy of CHRYSLER GROUP, LLC	C-4150A - Press, Ball Joint (Originally Shipped In Kit Number(s) 6672, 6745.)
Courtesy of CHRYSLER GROUP, LLC	C-4212F - Press, Ball Joint (Originally Shipped In Kit Number(s) 6745, 6880, 6881, MLR-C03.)
Courtesy of CHRYSLER GROUP, LLC	C-4212-5 - Adapters, Ball Joint Press
Courtesy of CHRYSLER GROUP, LLC	C-4212-6 - Adapters, Ball Joint Press
Courtesy of CHRYSLER GROUP, LLC	C-4212-7 - Adapters, Ball Joint Press
Courtesy of CHRYSLER GROUP, LLC	8836 - Remover/Installer (Originally Shipped In Kit Number(s) 8715, 8719.)
Courtesy of CHRYSLER GROUP, LLC	10140 - Remover, Installer, Ball Joint (Originally Shipped In Kit Number(s) 10139.)
Courtesy of CHRYSLER GROUP, LLC	9520-2A - Installer, Bushing (Originally Shipped In Kit Number(s) 9329, 9329-SUP, 9515-SUP, 9516, 9516-SUP, 9517-SUP, 9518, 9519, 9540-SUP, 9541-SUP.)
Courtesy of CHRYSLER GROUP, LLC	2026900170 - Kit, Pressing Tool
Courtesy of CHRYSLER GROUP, LLC	2074201130 - Kit, Forcing Screw - 3/4"
Courtesy of CHRYSLER GROUP, LLC	2074203130 - Driver, Rear Body Bushing
Courtesy of CHRYSLER GROUP, LLC	2074204130 - Receiver, Rear Body Bushing
Courtesy of CHRYSLER GROUP, LLC	2074202130 - Receiver, Rear Body Bushing
Courtesy of CHRYSLER GROUP, LLC	2074205130 - Driver, Body Bushing-Installation
Courtesy of CHRYSLER GROUP, LLC	2074218130 - Bridge, Body Bushing-Installation
Courtesy of CHRYSLER GROUP, LLC	2074207130 - Driver, Front Body Bushing-Removal
Courtesy of CHRYSLER GROUP, LLC	2074208130 - Receiver, Front Body Bushing-Removal

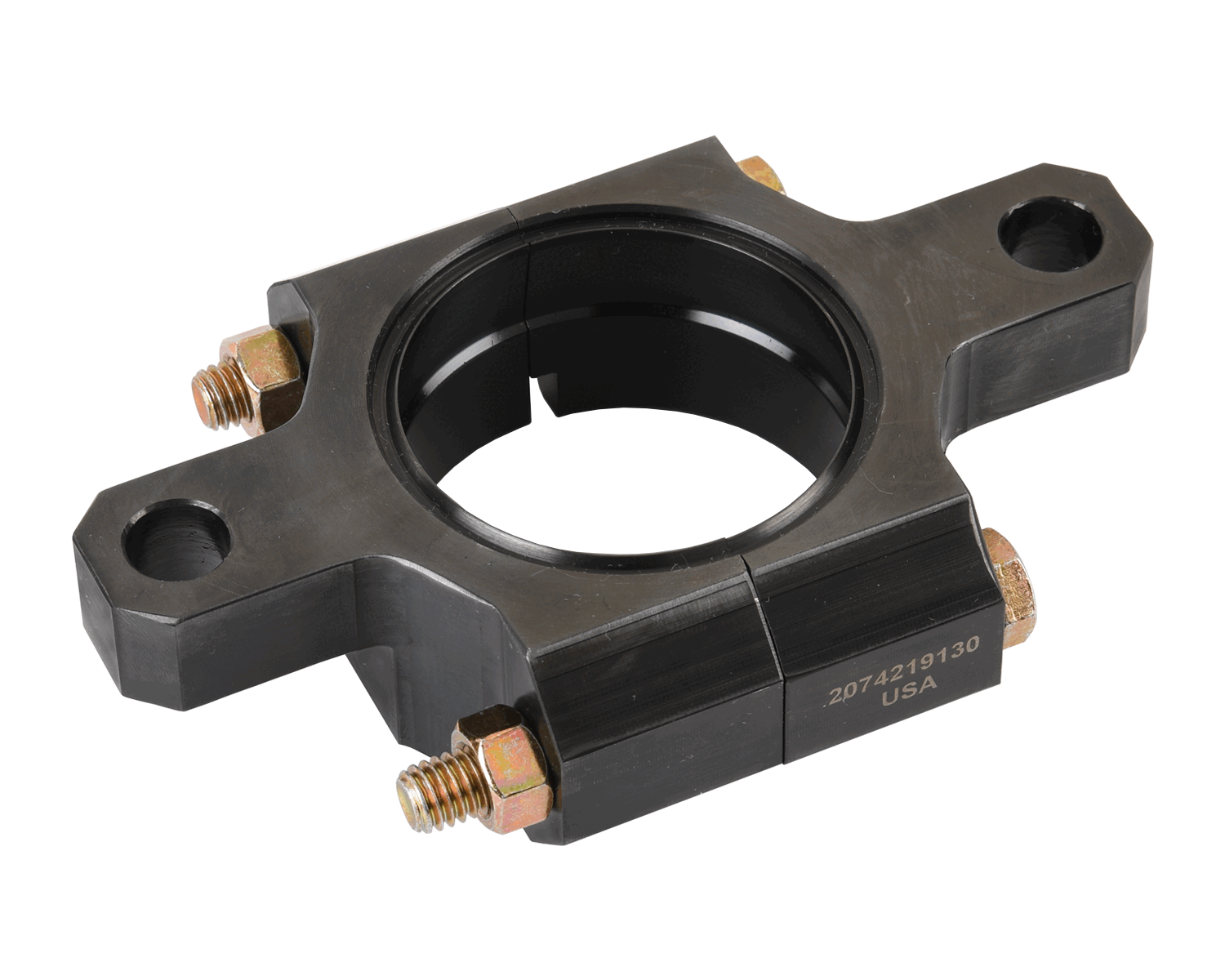

Courtesy of CHRYSLER GROUP, LLC	2074219130 - Collar, Front Body Bushing-Compression
Courtesy of CHRYSLER GROUP, LLC	2074206130 - Receiver, Front Body Bushing-Installation
Courtesy of CHRYSLER GROUP, LLC	2074302130 - Receiver, Lower Torque Strut
Courtesy of CHRYSLER GROUP, LLC	2074303130 - Support, Lower Torque Strut-Bottom
Courtesy of CHRYSLER GROUP, LLC	2074301130 - Installer, Lower Torque Strut
Courtesy of CHRYSLER GROUP, LLC	2074305130 - Support, Lower Torque Strut-Top
Courtesy of CHRYSLER GROUP, LLC	2074304130 - Collar, Lower Torque Strut Compression
Courtesy of CHRYSLER GROUP, LLC	2074306130 - Kit, Forcing Screw-7/16"

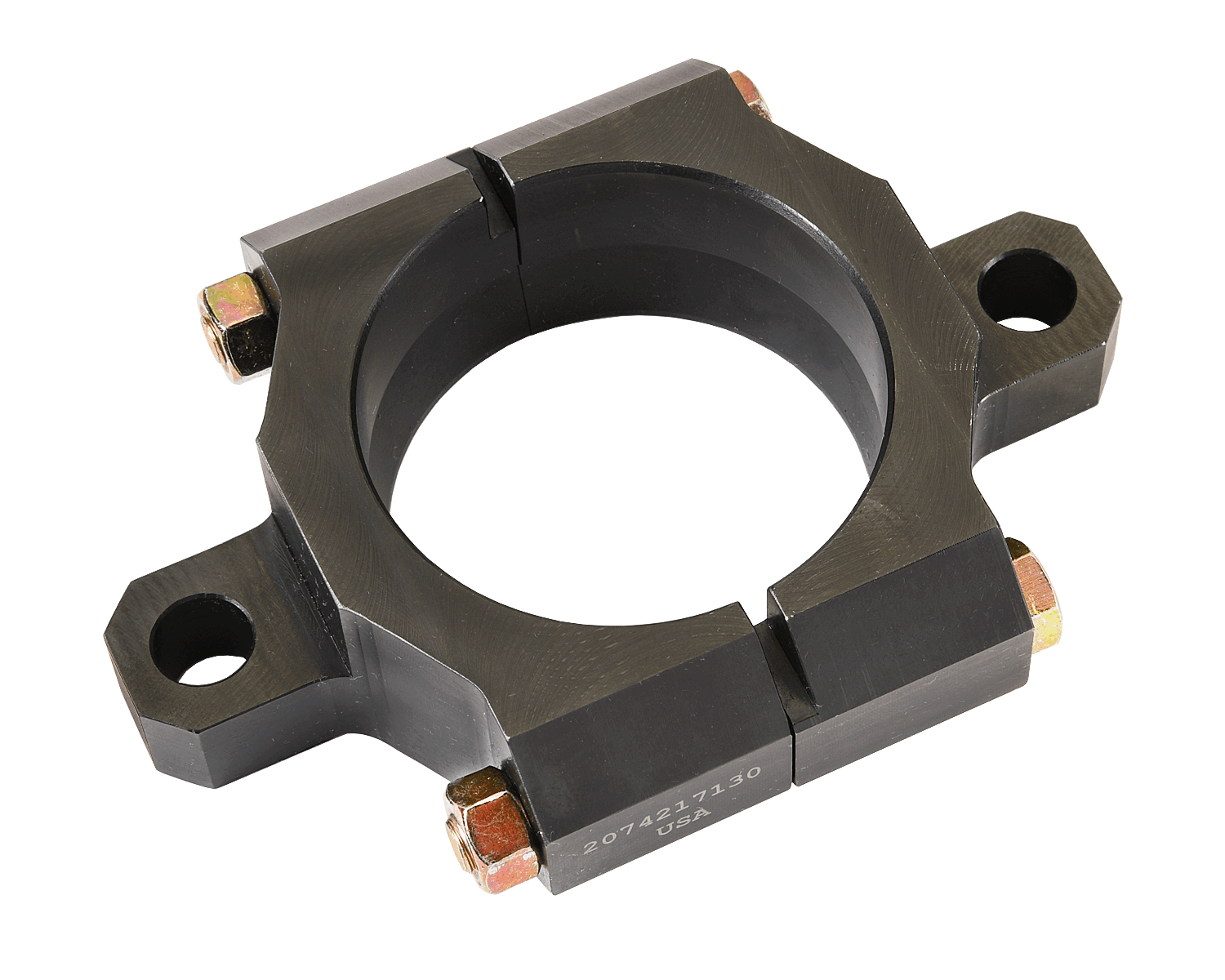

Courtesy of CHRYSLER GROUP, LLC	2074217130 - Collar, Rear Body Bushing Compression
Courtesy of CHRYSLER GROUP, LLC	10106-4 - Receiver, Removal (Originally Shipped In Kit Number(s) 10105, 10108.)
