Rear Track Bar

Courtesy of CHRYSLER GROUP, LLC

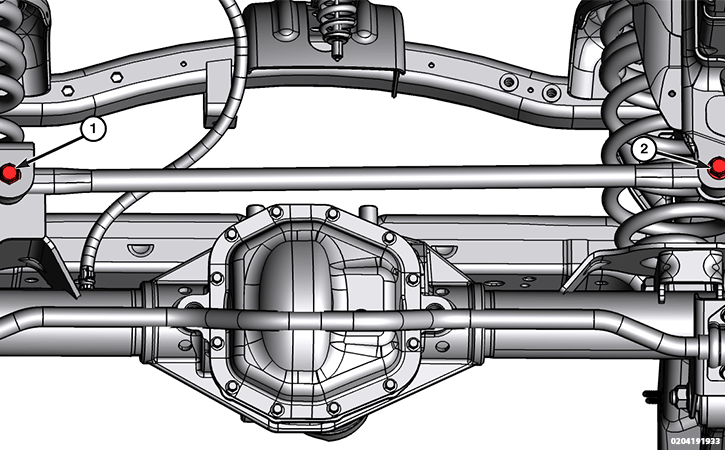

TORQUE SPECIFICATIONS - REAR TRACK BAR

CALLOUT	DESCRIPTION	SPECIFICATION	COMMENT
1	Upper Track Bar Bolt	125 N. m (92 Ft. Lbs.)	-
2	Lower Track Bar Bolt	135 N. m (100 Ft. Lbs.)	-
