Removal And Installation: Removal

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    GC0190419Courtesy of CHRYSLER GROUP, LLC
  2. Look inside of the 12V receptacle (1) and note position of the retaining bosses (2).
    GC0190376Courtesy of CHRYSLER GROUP, LLC

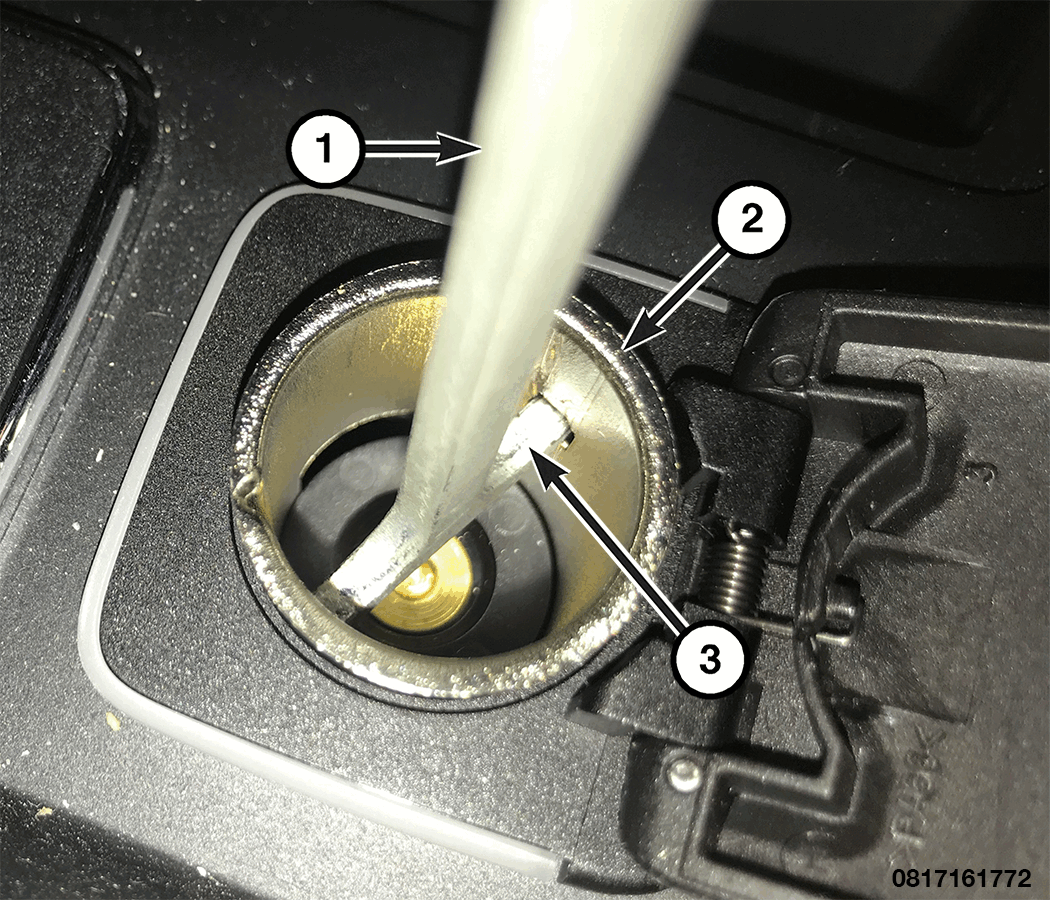

  3. Insert Remover, Power Outlet (special tool #10246A, Remover, Power Outlet) (1) into the retaining bosses (3) of the power outlet (2).
  4. Pull the base (2) out through the mounting ring by gently rocking the tool (1).
    GC0143809Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the wire harness electrical connector (1) from the power outlet (2).
  6. Set the base aside and remove the base mount ring.
