Removal And Installation: Installation

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

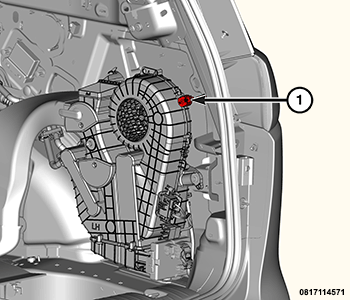

GC0177651Courtesy of CHRYSLER GROUP, LLC
  1. Position the power liftgate chime to the right inner D-pillar in the vehicle (1).
  2. Engage the retainer integral to the chime housing into the hole in the inner D-pillar.
  3. Connect the chime wire harness connector.
  4. Engage the retainer integral to the chime pigtail wire connector with the hole in the inner D-pillar.
  5. Install the quarter trim panel to the lower right inner D-pillar. Refer to PANEL, D-PILLAR TRIM, REMOVAL AND INSTALLATION .
  6. Install the scuff plate to the liftgate opening sill. Refer to PLATE, SCUFF, LIFTGATE SILL, REMOVAL AND INSTALLATION .
  7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
