Description And Operation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION

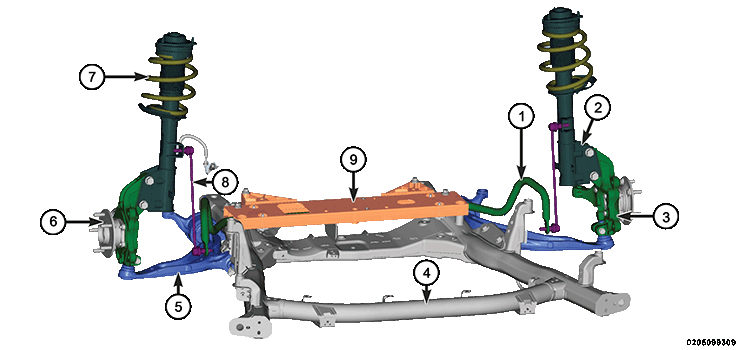

This vehicle is equipped with a front independent, MacPherson strut suspension with a stabilizer bar. The front suspension system is attached to a reinforced steel cross member and is equipped with the following components:
- Stabilizer Bar (1)
- MacPherson Front Struts (2)
- Steering Knuckles (3)
- Front Suspension Crossmember (4)
- Lower Control Arms (5)
- Hub and Bearing Assembly (6)
- Coil springs (7)
- Stabilizer bar links (8)
- Steering Gear Crossmember (9)
