Removal And Installation: Installation

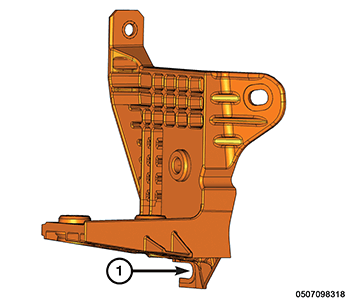

Position the Integrated Control Unit (ICU) to the ICU bracket.
Install and tighten the three ICU bolts to the proper torque specifications. Refer to (s TORQUE SPECIFICATIONS ).

Courtesy of CHRYSLER GROUP, LLC
Position the ICU into the vehicle, install and tighten the ICU bolt (2), nut (1), to the proper torque specifications. Refer to (TORQUE SPECIFICATIONS ).

Courtesy of CHRYSLER GROUP, LLC
Tighten the ICU nut (1) to the proper torque specifications. Refer to (TORQUE SPECIFICATIONS ).

Courtesy of CHRYSLER GROUP, LLC

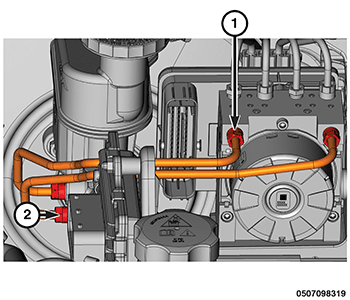

Install the primary and secondary brake tube nuts (2) to the master cylinder, and tighten them to the proper torque specifications. Refer to (TORQUE SPECIFICATIONS ).

Courtesy of CHRYSLER GROUP, LLC

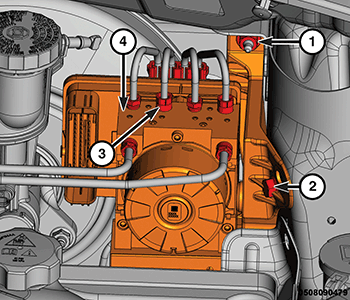

Install the six brake tube nuts (3) to the HCU and tighten to the proper torque specifications. Refer to (TORQUE SPECIFICATIONS ).
Connect the ICU wire harness connector.
Install the battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
Fill and bleed braking system. Refer to STANDARD PROCEDURE .
If a NEW ABS control unit is being installed, connect a scan tool and calibrate the yaw sensor and the steering angle sensor.

NOTE:

When replacing the control unit, connect the diagnostic tool to the OBD port and go to "control BSM" and go to the menu "actuators" and start the process of "activating the automatic functions."
