Removal And Installation

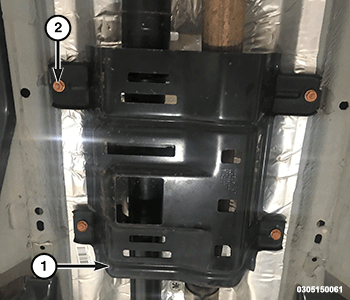

GC0188533Courtesy of CHRYSLER GROUP, LLC

REMOVAL

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the four nuts (2) and remove the heat shield (1).

INSTALLATION

  1. Install the heat shield (1) and install the four nuts (2).
  2. Tighten the nuts (2) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
