Fluid Pressure Sensor Removal

  1. Remove the valve body. Refer to VALVE BODY, REMOVAL .

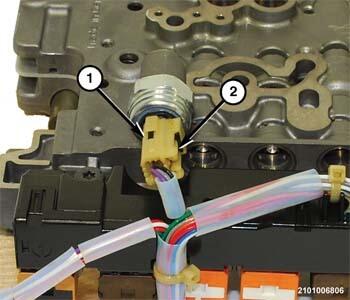

    GC0159501Courtesy of CHRYSLER GROUP, LLC
  2. Release the lock (2) on the fluid pressure sensor wire harness connector (1).
  3. Pull the wire harness connector (1) from the fluid pressure sensor.

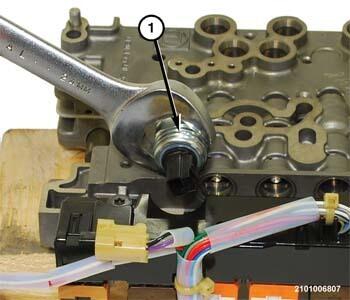

    GC0159757Courtesy of CHRYSLER GROUP, LLC
  4. Using a suitable wrench, loosen the fluid pressure sensor (1).

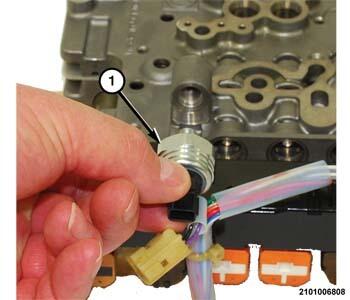

    GC0159596Courtesy of CHRYSLER GROUP, LLC
  5. Remove the fluid pressure sensor (1) from the valve body.
