Module-Power-Blower Motor-Front C2 (Standard) Connector End View (D3881B)

Harness-Family: HVAC

Color: BLACK

Gender: FEMALE

Part Number: 1-1418506-5

Part Description: Not Available

Connector No: D3881B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Module-Power-Blower Motor-Front C2 Connector End View (Standard)

Courtesy of CHRYSLER

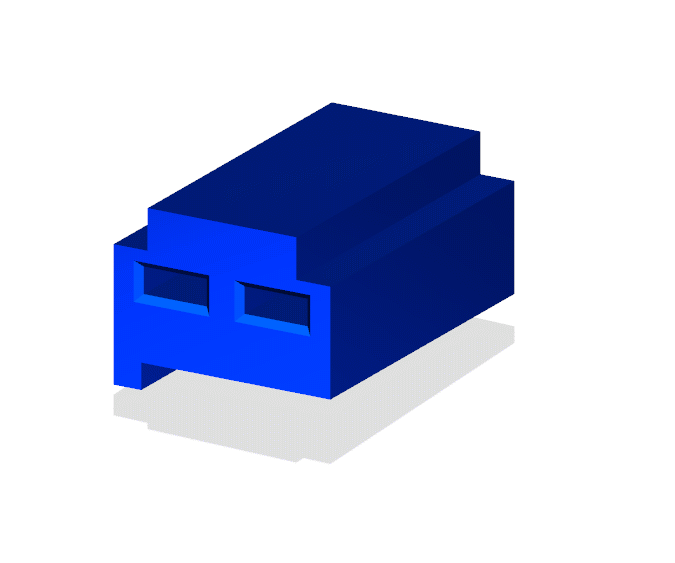

Fig 2: Module-Power-Blower Motor-Front C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Power-Blower Motor-Front C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

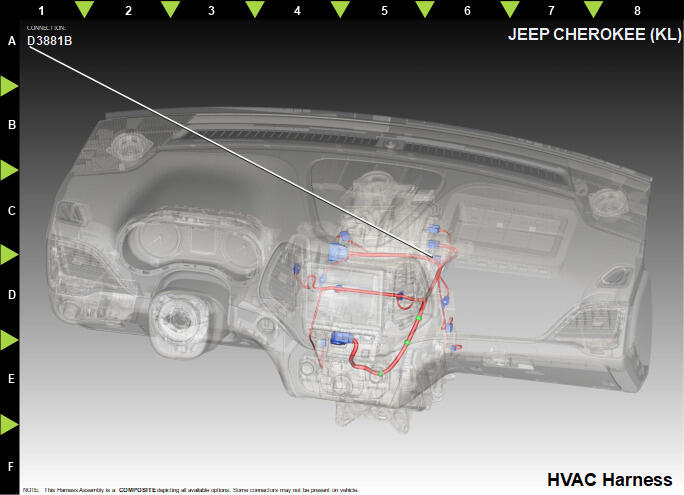

Fig 4: Module-Power-Blower Motor-Front C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	C6	RD	3.0	BLOWER MOTOR POWER RETURN	N/A
2	C7	BN	3.0	BLOWER MOTOR SUPPLY	N/A
