Buckle, Rear Center - Adjustable
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

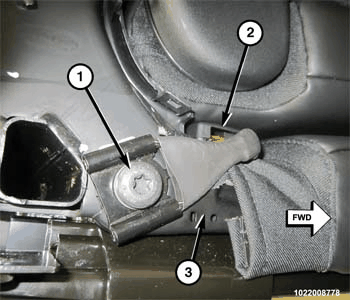

- Position the rear center seat belt buckle (2) to the left (60%) rear seat.
- Working from behind the rear seats, install the bolt (1) that secures the lower anchor for the rear center seat belt buckle to the inboard side of the left (60%) rear seat cushion frame (3). Tighten the bolt to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Still working from behind the rear seats, install the trim cover to the inboard hinge bracket of the left (60%) rear seat.
- Adjust the left (60%) rear seat and right (40%) rear seat to their original positions.
