Sensor-Rear Drive Pressure (Standard) Connector End View (D2329A)

Harness-Family: UNDERBODY

Color: BLACK

Gender: FEMALE

Part Number: 13602480

Part Description: Not Available

Connector No: D2329A

Option: Standard

Repair Kit Part Number: 68199259AA

Cavity Count: 3

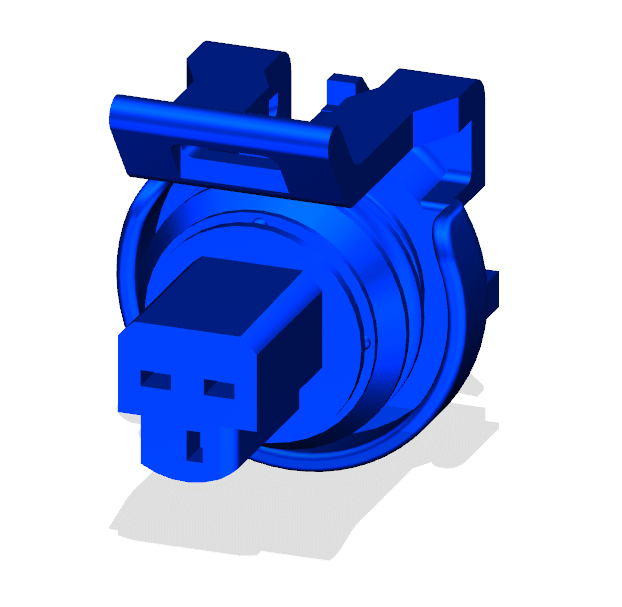

Fig 1: Sensor-Rear Drive Pressure Connector End View (Standard)

Courtesy of CHRYSLER

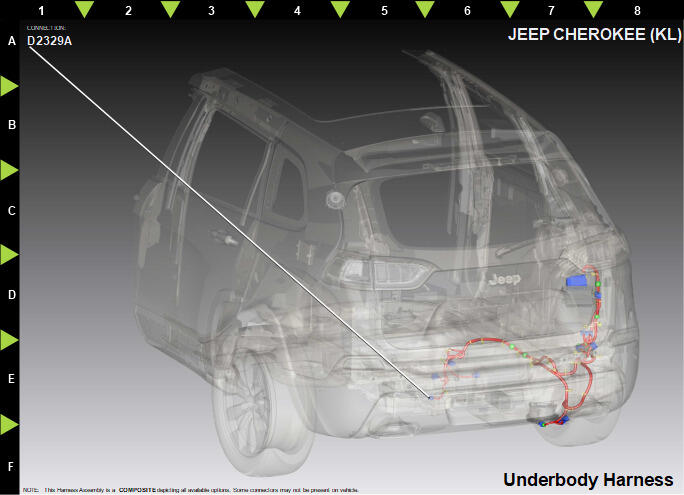

Fig 2: Sensor-Rear Drive Pressure Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Sensor-Rear Drive Pressure Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Sensor-Rear Drive Pressure Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K594	BN/GN	0.50	DRIVETRAIN SENSOR RETURN	N/A
2	K504	BN	0.50	DRIVETRAIN 5 VOLT SUPPLY	N/A
3	K604	BN/BG	0.50	DRIVETRAIN SIGNAL	N/A
