Module-Door-Driver C3 (Standard) Connector End View (D3818C)

Harness-Family: Door_Front_Driver

Color: NATURAL

Gender: FEMALE

Part Number: 2-2177196-1_2177231-1

Part Description: INNER HOUSING BLACK

Connector No: D3818C

Option: Standard

Repair Kit Part Number: 68156141AA

Cavity Count: 5

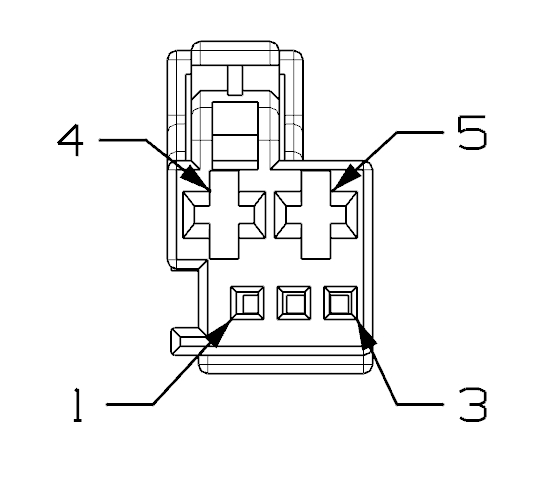

Fig 1: Module-Door-Driver C3 Connector End View (Standard)

Courtesy of CHRYSLER

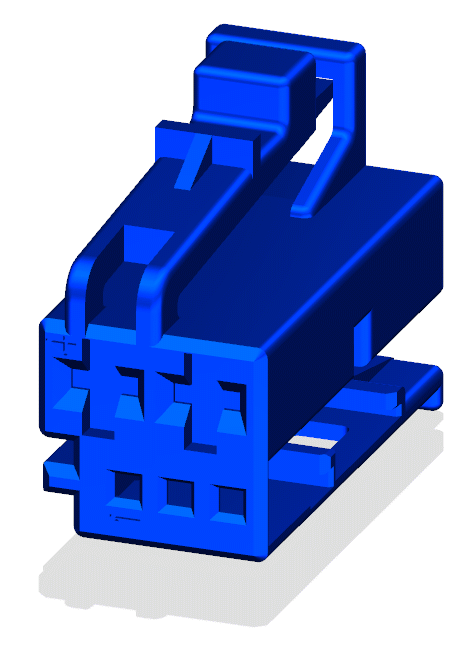

Fig 2: Module-Door-Driver C3 Isometric View (Standard)

Courtesy of CHRYSLER

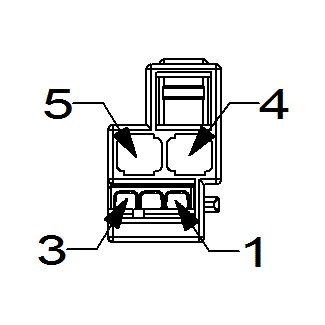

Fig 3: Module-Door-Driver C3 Wire Insertion View (Standard)

Courtesy of CHRYSLER

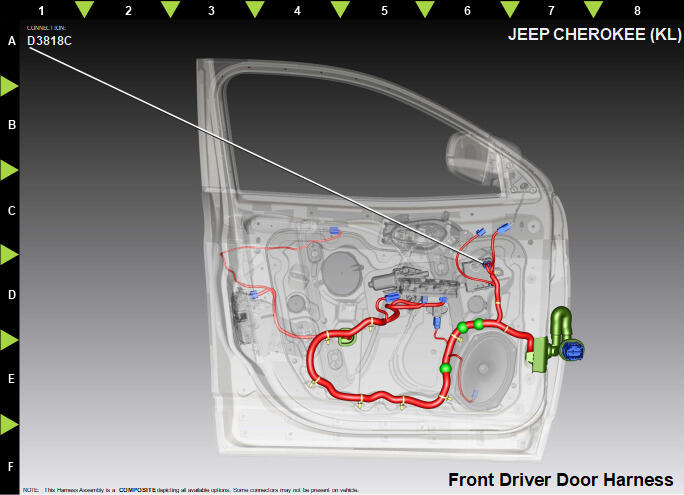

Fig 4: Module-Door-Driver C3 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D104	WH	0.50	CAN IHS (-)	N/A
2	D103	BN	0.50	CAN IHS (+)	N/A
3	N0	NA	0	NO CONNECT	N/A
4	Z916	BK	2.5	GROUND	RHD
4	Z919	BK	2.0	GROUND	LHD
5	A924	RD	2.0	FUSED B(+)	N/A
