Sensor, Oil Temperature: Description
WARNING: This page is about a different variant/trim than selected.

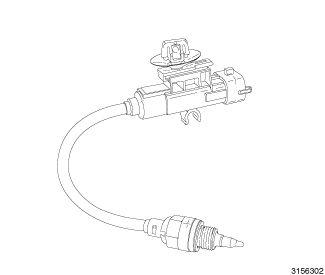

The oil temperature sensor is a two wire sensor located on the variable valve actuation assembly at the cylinder head. The sensor probe is mounted to the variable valve actuation assembly through an access hole. A compression washer seals the oil temperature sensor to the variable valve actuation assembly.
