Air Cleaner: Installation

WARNING: This page is about a different variant/trim than selected.

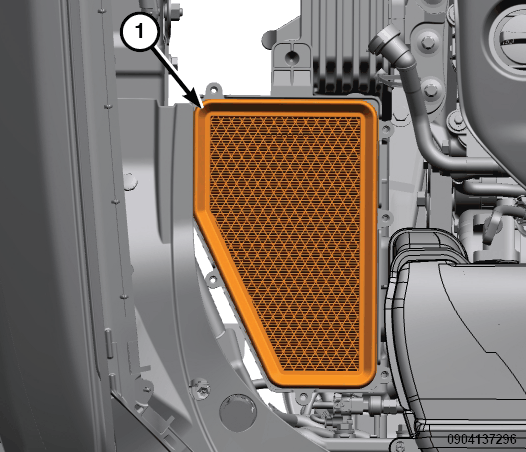

GC0186875Courtesy of CHRYSLER GROUP, LLC
  1. Install the air cleaner element (1) into the air cleaner body.

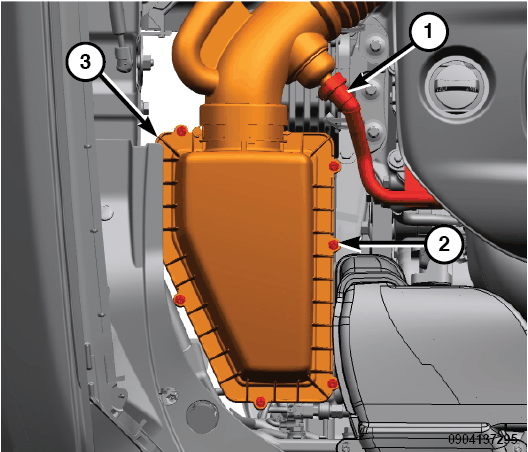

    GC0187074Courtesy of CHRYSLER GROUP, LLC
  2. Seat the air cleaner body cover (3) onto the housing and tighten the screws (2) to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  3. Connect the quick coupling (1) of the fresh air make up hose to the clean air hose.
