Sensor, Oil Temperature: Description
WARNING: This page is about a different variant/trim than selected.

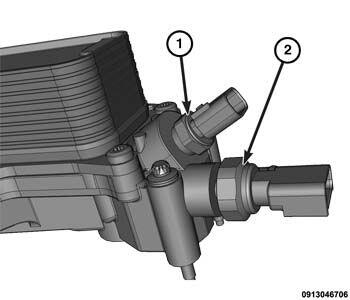

The oil temperature sensor (1) is located on the oil filter housing. The oil temperature sensor is a two wire sensor with a tapered threaded sensor probe. The sensor probe is mounted to the oil filter housing through an access hole. A thread lock patch seals the oil temperature sensor to the oil filter housing.
