Sensor, Oil Pressure: Installation

WARNING: This page is about a different variant/trim than selected.

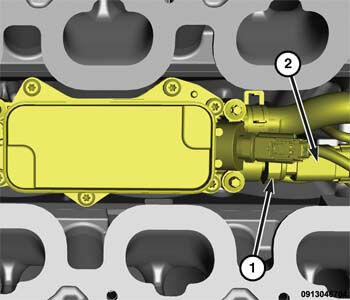

GC0161843Courtesy of CHRYSLER GROUP, LLC
  1. Install the oil pressure sensor (1) and tighten to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  2. Connect the oil pressure sensor wire harness connector (2).
  3. Install the upper and lower intake manifolds. Refer to MANIFOLD, INTAKE, INSTALLATION .
