Center Heat Shield

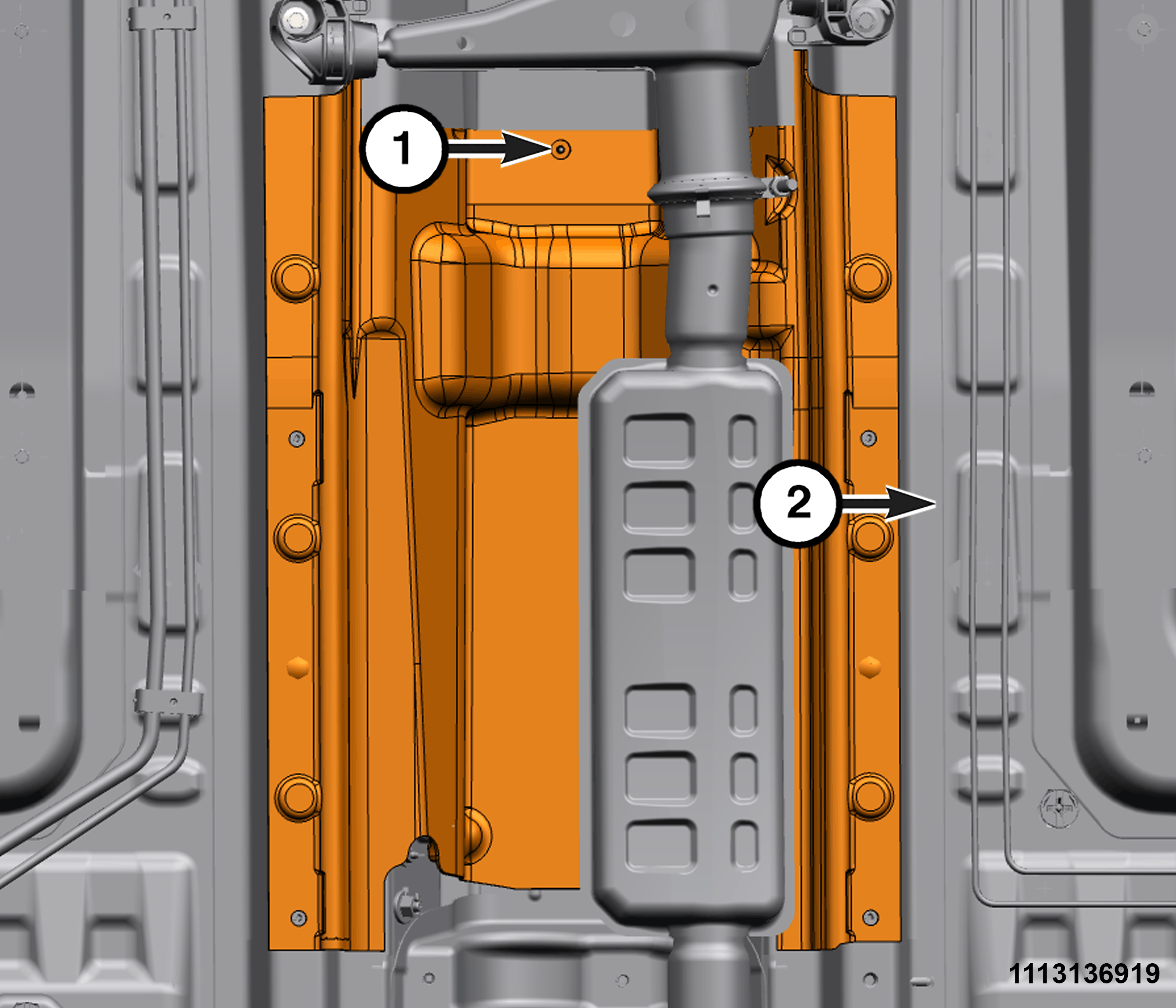

GC0187181Courtesy of CHRYSLER GROUP, LLC
  1. Install the center heat shield (2) and securely tighten the fasteners (1).
  2. Install the left side skid plate. Refer to PLATE, SKID, SIDE, INSTALLATION .
  3. Install the right side skid plate. Refer to PLATE, SKID, SIDE, INSTALLATION .
  4. Install the propeller shaft. Refer to INSTALLATION .
